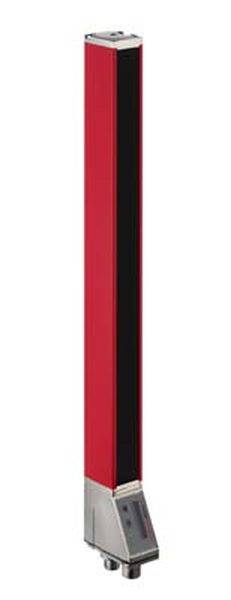

Leuze Electronic Light barrier 50128890 Range (max.) 3.5 m Protective field height 240 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Type
50128890
Range of uses
PPE
Response time
30 µs
Range (min.)
0.1 m
Technical specifications
- Product type
Light barrier
- Type
50128890
- Range of uses
PPE
- Response time
30 µs
- Range (min.)
0.1 m
- Range (max.)
3.5 m
- Beam spacing
5 mm
- Protective field height
240 mm
- Content
1 pc(s)
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.03 ms
FALSE
3.5 m
240 mm
TRUE
IP65
5 mm
29 mm
54.8 mm
313 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981990 Leuze Electronic Light barrier 50128890 Range (max.) 3.5 m Protective field height 240 mm
Description
Application: Precise object detection; special version: Parallel beam scanning, diagonal beam scanning, cross beam scanning; operating range: 0.1 ... 3.5 m; measuring field length: 240 mm; beam distance: 5 mm; supply voltage: DC; selectable inputs/outputs: 4 pcs; response time per beam: 30 µs; service interface: IO-Link; connection: Round connector, M12, 8-pin; Dimensions 29 x 54.8 x 313 mm
