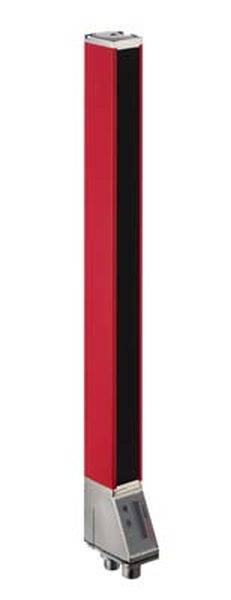

Leuze Electronic Light barrier 50128961 Range (max.) 7 m Protective field height 2.230 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Length
2.313 mm
Height
29 mm
Type
50128961
Response time
30 µs
Technical specifications
- Product type
Light barrier
- Type
50128961
- Response time
30 µs
- Range (min.)
0.3 m
- Range (max.)
7 m
- Beam spacing
20 mm
- Protective field height
2.230 mm
- Content
1 pc(s)
- Length
2.313 mm
- Width
54.8 mm
- Height
29 mm
- Dim
(L x W x H) 2.313 x 54.8 x 29 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
30 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.03 ms
FALSE
7 m
2230 mm
TRUE
IP65
20 mm
29 mm
54.8 mm
2313 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981950 Leuze Electronic Light barrier 50128961 Range (max.) 7 m Protective field height 2.230 mm
Description
Application: Precise object detection; special version: Parallel beam scanning, diagonal beam scanning, cross beam scanning; operating range: 0.3 ... 7 m; measuring field length: 2,230 mm; beam distance: 20 mm; supply voltage: DC; selectable inputs/outputs: 4 pcs; response time per beam: 30 µs; service interface: IO-Link; connection: Round connector, M12, 8-pin; Dimensions 29 x 54.8 x 2,313 mm
This text is machine translated.
