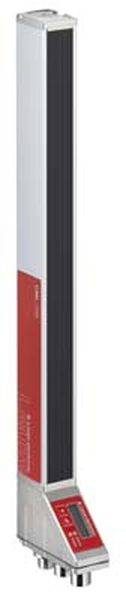

Leuze Electronic Light barrier 50131954 Range (max.) 7 m Protective field height 1.430 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Height
1.515 mm
Type
50131954
Range of uses
PPE
Response time
30 µs
Technical specifications
- Product type
Light barrier
- Type
50131954
- Range of uses
PPE
- Response time
30 µs
- Range (min.)
0.3 m
- Range (max.)
7 m
- Beam spacing
20 mm
- Protective field height
1.430 mm
- Total height
1.515 mm
- Content
1 pc(s)
- Width
29 mm
- Height
1.515 mm
- Dim
(W x H) 29 mm x 1.515 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
30 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.03 ms
FALSE
7 m
1430 mm
TRUE
IP65
20 mm
29 mm
35.4 mm
1515 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982176 Leuze Electronic Light barrier 50131954 Range (max.) 7 m Protective field height 1.430 mm
