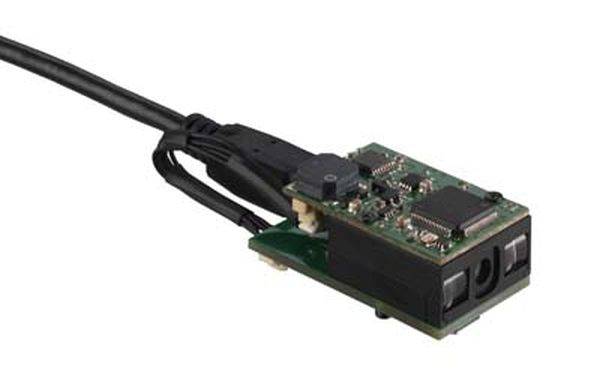

Leuze Electronic Mini scanner 50126081 Range (max.) 250 mm
EAN:
Part number:
Item no:
Product type
Mini scanner
Length
22.5 mm
Height
33 mm
Type
50126081
Connector
Power strip
Technical specifications
- Product type
Mini scanner
- Type
50126081
- Connector
Power strip
- Range (min.)
40 mm
- Range (max.)
250 mm
- Content
1 pc(s)
- Length
22.5 mm
- Width
14 mm
- Height
33 mm
- Dim
(L x W x H) 22.5 x 14 x 33 mm
- Min. temperature
0 °C
- Max. temperature
40 °C
DC
FALSE
0-40 °C
1
NPN
Plug-in connection
4.5-5.5 V
Safety class 0
FALSE
Other
FALSE
FALSE
FALSE
22.5 mm
14 mm
33 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982345 Leuze Electronic Mini scanner 50126081 Range (max.) 250 mm
Description
Special version: Scan engine module; scan rate, typical: 330 scans/s; read distance: 40 ... 250 mm; reading technology: Line scanner; light beam outlet: Front; supply voltage: 4.5 ... 5.5 V, DC; Digital switching outputs: 1 pcs.; Interface: USB, RS 232; Connection: Connector strip; Dimensions: 22.5 mm x 14 mm x 33 mm; Display: Buzzer; Ambient temperature operation: 0 ... 40 °C).
