Name: Leuze Electronic One-way light barrier 50036356 50036356 Switch (light-ON/dark-ON) 1 pc(s)
Brand: Leuze Electronic
SKU: 2980692

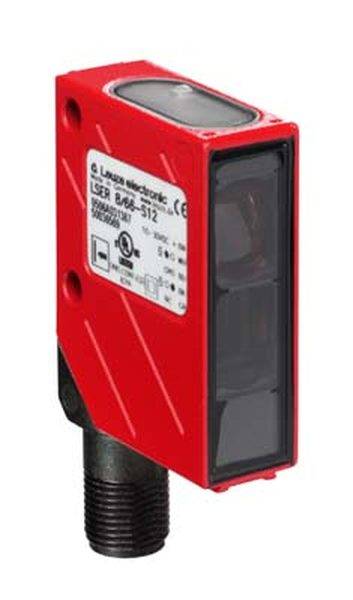

A red sensor with a rectangular shape, LED display, and product label. Used for object detection in industrial applications.

Product type

One-way light barrier

Functions

Switch (light-ON/dark-ON)

Type

50036356

Operating voltage

30 V DC

Response time

0.33 ms

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: One-way light barrier

Type: 50036356

Functions: Switch (light-ON/dark-ON)

Operating voltage: 30 V DC

Response time: 0.33 ms

Contact type: Antivalent

Outputs: PNP

Switching frequency: 1500 Hz

Enclosure material: Metal

: 20 m

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 38 mm

Width: 15 mm

Height: 48 mm

Dim: (L x W x H) 38 x 15 x 48 mm

Content: 1 pc(s)

: DC

: 100 mA

: Metal

: FALSE

: -40-60 °C

: FALSE

: 1500 Hz

: 2

: Connector M12

: PNP/PNP

: Anticoincidence

: 10-30 V

: Safety class 2

: None

: None

: Cuboid

: None

: Other

: Receiver

: FALSE

: FALSE

: 0.33 ms

: FALSE

: Glass

: IP67

: FALSE

: FALSE

: FALSE

: FALSE

: 15 mm

: 48 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: TRUE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: 38 mm

: 20000 mm

: FALSE

: FALSE

: Light-/dark switching

: 12000 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2980692 Leuze Electronic One-way light barrier 50036356 50036356 Switch (light-ON/dark-ON) 1 pc(s)

Description

Limit range: 0 ... 20 m; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,500 Hz; connection: round plug, M12, Metal, 5-pin, rotatable 90°; design housing: cubic; dimensions: 15 mm x 48 mm x 38 mm; material housing: metal; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
