Name: Leuze Electronic Photo sensor 50019283 50019283 Background suppression 1 pc(s)
Brand: Leuze Electronic
SKU: 3020380

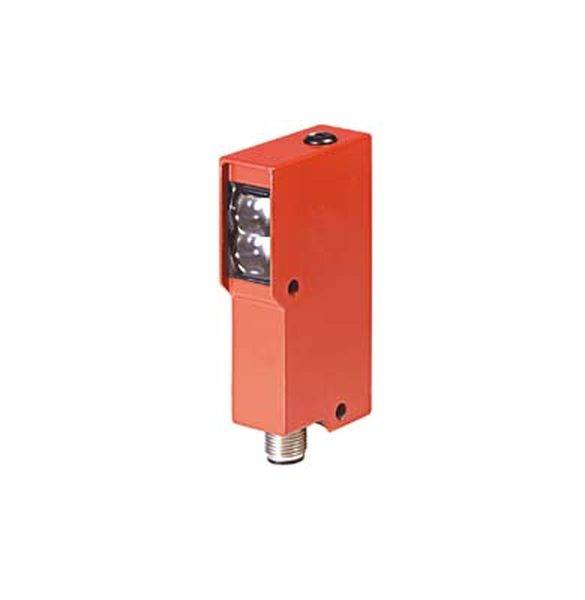

Red rectangular sensor with a metallic connection on the underside, front lenses, standing freely against a white background.

Product type

Photo sensor

Functions

Background suppression

Type

50019283

Switching frequency

500 Hz

Enclosure material

Metal

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Photo sensor

Type: 50019283

Functions: Background suppression

Switching frequency: 500 Hz

Enclosure material: Metal

Transmitter type: LED IR

: 0.44 m

Features: Incl. background suppression

Min. temperature: -20 °C

Max. temperature: 60 °C

Length: 20 mm

Width: 80 mm

Height: 42.2 mm

Dim: (L x W x H) 20 x 80 x 42.2 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3020380 Leuze Electronic Photo sensor 50019283 50019283 Background suppression 1 pc(s)

Description

Border range, white 90%: 0.005 ... 0.44 m; light source: LED, infrared; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, light/dark switchable; switching frequency: 500 Hz; Connection: round plug, M12, metal, 4-pin; design housing: cubic; Dimensions: 20 mm x 80 mm x 42.2 mm; material housing: metal; ambient temperature operation: -20 ... 60 °C; protection class IP 67
