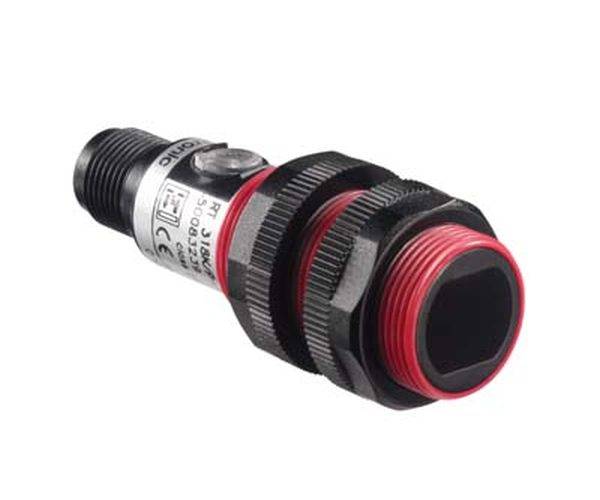

Leuze Electronic Photo sensor 50106089 50106089 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Photo sensor
Functions
Switch (light-ON/dark-ON)
Type
50106089
Response time
0.5 ms
Contact type
Antivalent
Technical specifications
- Product type
Photo sensor
- Type
50106089
- Functions
Switch (light-ON/dark-ON)
- Response time
0.5 ms
- Contact type
Antivalent
- Outputs
PNP Antivalent
- Switching frequency
1000 Hz
- Cable length
2.000 mm
- Size
M18
- Enclosure material
Plastic
- Transmitter type
LED red
- Wavelength
625 nm
0.14 m
- Features
Incl. background suppression
- Min. temperature
-25 °C
- Max. temperature
65 °C
- Length
50 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 50 mm
- Content
1 pc(s)
DC
Plastic
FALSE
-25-65 °C
FALSE
1000 Hz
2
Cable
Other
Anticoincidence
10-30 V
Safety class 2
Manual adjustment
None
None
Cylinder, screw-thread
None
Polarity free red light
FALSE
FALSE
0.5 ms
FALSE
625 nm
Plastic
Polyvinyl chloride (PVC)
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
50 mm
FALSE
FALSE
Light-/dark switching
Background fade-out
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983791 Leuze Electronic Photo sensor 50106089 50106089 Switch (light-ON/dark-ON) 1 pc(s)
Description
Hints
For more information on this 50106089, please refer to its datasheet under 'downloadable documents'
