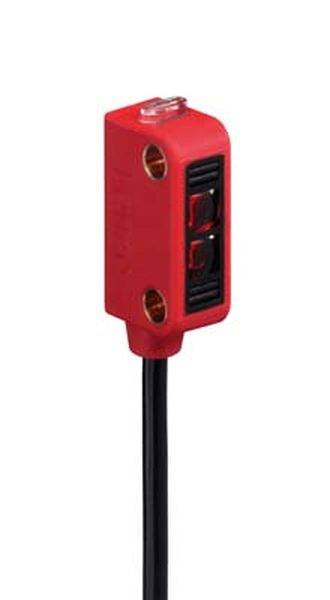

Leuze Electronic Photo sensor 50112121 50112121 Light-ON, Background suppression 1 pc(s)
EAN:
Part number:
Item no:
Product type
Photo sensor
Functions
Light-ON
Background suppression
Type
50112121
Operating voltage
30 V DC
Response time
0.72 ms
Technical specifications
- Product type
Photo sensor
- Type
50112121
- Functions
Light-ON
Background suppression
- Operating voltage
30 V DC
- Response time
0.72 ms
- Outputs
NPN
PNP
- Switching frequency
700 Hz
- Cable length
2.000 mm
- Enclosure material
Plastic
- Transmitter type
LED red
- Wavelength
640 nm
0.06 m
- Min. temperature
-20 °C
- Max. temperature
55 °C
- Length
12 mm
- Width
8 mm
- Height
23.1 mm
- Dim
(L x W x H) 12 x 8 x 23.1 mm
- Content
1 pc(s)
DC
50 mA
Plastic
FALSE
4-46 mm
-30-55 °C
FALSE
700 Hz
2
Cable
PNP/NPN
Other
10-30 V
Safety class 3
None
None
Cuboid
None
Polarity free red light
FALSE
FALSE
0.72 ms
1-60 mm
FALSE
640 nm
Plastic
Polyvinyl chloride (PVC)
IP67
FALSE
FALSE
FALSE
FALSE
8 mm
23.1 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
12 mm
FALSE
FALSE
Light switching
Background fade-out
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983266 Leuze Electronic Photo sensor 50112121 50112121 Light-ON, Background suppression 1 pc(s)
Description
Application: Small parts detection; special design: Fixed sensing width, small light spot (S); limit range, white 90%: 0.001 ... 0.06 m; Fixed set range: 0.05 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, NPN, light-switching; switching frequency: 700 Hz; connection: line, 2,000 mm, 4-wire; design housing: cubic; dimensions: 8 mm x 23.1 mm x 12 mm; material housing: plastic; ambient temperature operation: -20 ... 55 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50112121, please refer to its datasheet under 'downloadable documents'
