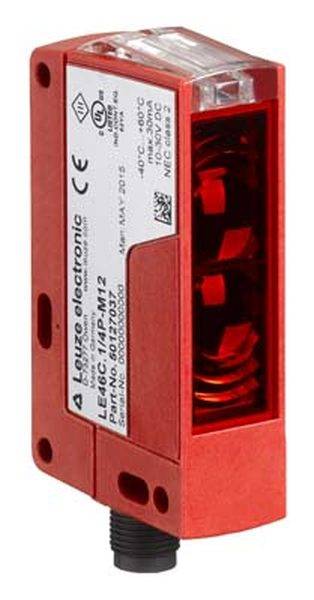

Leuze Electronic Photo sensor 50127063 50127063 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Photo sensor
Functions
Light-ON
Type
50127063
Operating voltage
30 V DC
Response time
2 ms
Technical specifications
- Product type
Photo sensor
- Type
50127063
- Functions
Light-ON
- Operating voltage
30 V DC
- Response time
2 ms
- Outputs
PNP
- Switching frequency
250 Hz
- Enclosure material
Plastic
- Transmitter type
LED IR
- Wavelength
860 nm
3 m
- Features
Incl. background suppression
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
44 mm
- Width
20.5 mm
- Height
76.3 mm
- Dim
(L x W x H) 44 x 20.5 x 76.3 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
120-3000 mm
-40-60 °C
FALSE
250 Hz
1
Connector M12
PNP
Other
10-30 V
Safety class 3
Manual adjustment
None
None
Cuboid
None
Infrared light
FALSE
FALSE
2 ms
FALSE
860 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
20.5 mm
76.3 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
44 mm
FALSE
FALSE
Light switching
Background fade-out
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983293 Leuze Electronic Photo sensor 50127063 50127063 Light-ON 1 pc(s)
Description
Hints
For more information on this 50127063, please refer to its datasheet under 'downloadable documents'
