Name: Leuze Electronic Photo sensor 50134233 50134233 Light-ON, Background suppression 1 pc(s)
Brand: Leuze Electronic
SKU: 3818844

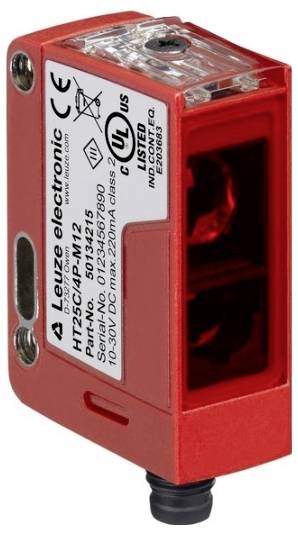

Red Leuze electronic photoelectric sensor with clear front lens and mounting holes, shown with product label and cable exit.

Product type

Photo sensor

Functions

Light-ON

Background suppression

Max. operating voltage

30 V DC

Connector

M8 connector

Type

50134233

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Photo sensor

Type: 50134233

Functions: Light-ON
Background suppression

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Outputs: PNP

Switching frequency: 1000 Hz

Connector: M8 connector

Enclosure material: Plastic

Transmitter type: IRED

Wavelength: 850 nm

: IP67

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 30 mm

Width: 15 mm

Height: 42.7 mm

Dim: (L x W x H) 30 x 15 x 42.7 mm

Content: 1 pc(s)

Type: Ashlar

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3818844 Leuze Electronic Photo sensor 50134233 50134233 Light-ON, Background suppression 1 pc(s)

Description

Limit range: 0 ... 1.3 m; light source: LED, infrared; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,000 Hz; connection: round plug, M8, PUR, 4-pole; housing design: cubic; dimensions: 15 mm x 42.7 mm x 30 mm; material housing: plastic; operating elements: multi-speed spindle; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
