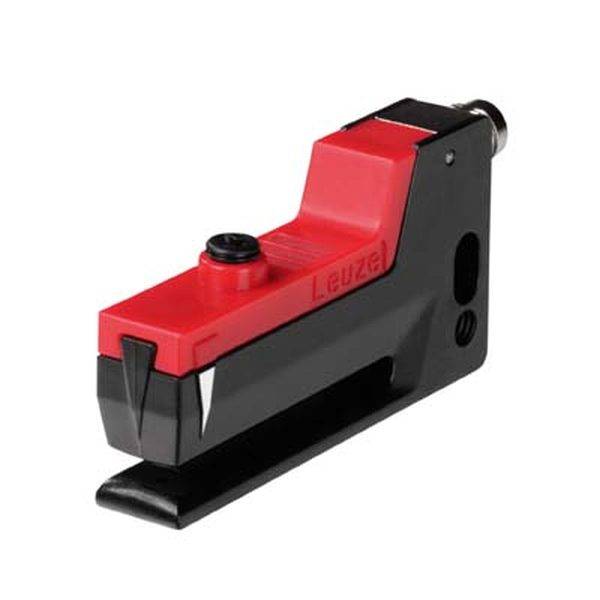

Leuze Electronic Reflective light barrier 50110108 50110108 Teach-in 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reflective light barrier
Functions
Teach-in
Type
50110108
Response time
0.05 ms
Contact type
Antivalent
Technical specifications
- Product type
Reflective light barrier
- Type
50110108
- Functions
Teach-in
- Response time
0.05 ms
- Contact type
Antivalent
- Switching frequency
10000 Hz
- Enclosure material
Plastic
- Transmitter type
LED IR
- Wavelength
940 nm
0.003 m
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Length
60 mm
- Width
11 mm
- Height
30 mm
- Dim
(L x W x H) 60 x 11 x 30 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-20-+60 °C
FALSE
10000 Hz
1
Connector M8
PNP/NPN
Anticoincidence
10-30 V
10-30 V
Safety class 3
Teach-In
None
None
Cuboid
Infrared light
3 mm
FALSE
FALSE
0.05 ms
FALSE
940 nm
Plastic
Other
IP65
FALSE
FALSE
FALSE
FALSE
11 mm
30 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
60 mm
3 mm
FALSE
FALSE
Light-/dark switching
3 mm
41 mm
3 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980700 Leuze Electronic Reflective light barrier 50110108 50110108 Teach-in 1 pc(s)
Description
Physical principle: Optical; application: Detection of non-transparent labels; label width, min.: 2 mm; label gap, min.: 2 mm; Medium: not transparent; light source: LED, infrared; supply voltage: 10 ... 30 V, DC; digital switching outputs: 1 pieces; switching output 1: Transistor, push-pull, switching signal in gaps in labels; switching frequency: 10,000 Hz; Connection: round plug, M8, 4-pin; connector outlet: horizontal (parallel to the tape run); jaw width: 3 mm; jaw depth: 41 mm; dimensions: 11 mm x 30 mm x 60 mm; material housing: plastic; operating elements: teach button
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50110108, please refer to its datasheet under 'downloadable documents'
