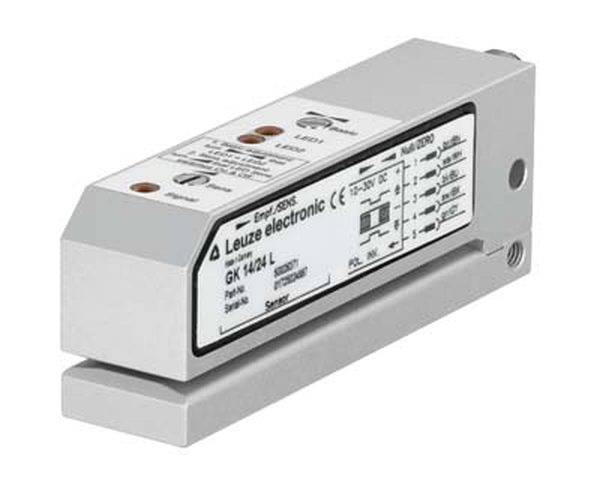

Leuze Electronic Reflective light sensor Capacitive 50026371 50026371 PNP (L x W x H) 110 x 24 x 36.5 mm
EAN:
Part number:
Item no:
Product type
Reflective light sensor
Outputs
PNP
Model
Capacitive
Length
110 mm
Height
36.5 mm
Technical specifications
- Product type
Reflective light sensor
- Type
50026371
- Outputs
PNP
- Enclosure material
Aluminium
- Model
Capacitive
- Length
110 mm
- Width
24 mm
- Height
36.5 mm
- Dim
(L x W x H) 110 x 24 x 36.5 mm
- Content
1 pc(s)
DC
FALSE
Metal
FALSE
Other
TRUE
5000 Hz
2
None
Connector M12
PNP
Other
10-30 V
None
None
FALSE
10-30 V
Other
None
24 mm
FALSE
36.5 mm
110 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980702 Leuze Electronic Reflective light sensor Capacitive 50026371 50026371 PNP (L x W x H) 110 x 24 x 36.5 mm
Description
Physical principle: Capacitive; application: Detection of non-transparent labels, detection of transparent labels; label width, min.: 10 mm; label gap, min.: 2 mm; Medium: transparent; supply voltage: 10 ... 30 V, DC; digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, switching signal in label gap, switchable; Switch output 2: transistor, NPN, switch signal in gap, switchable; switching frequency: 5,000 Hz; Connection: round plug, M12, 5-pin; plug outlet: horizontal (parallel to the tape run); jaw width: 1 mm; jaw depth: 85 mm; dimensions: 24 mm x 36.5 mm x 110 mm; material housing: metal, aluminum; control elements: multi-turn potentiometer
