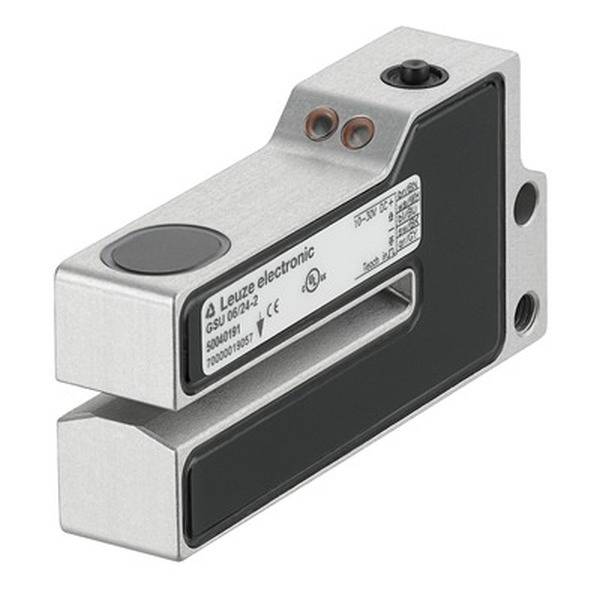

Leuze Electronic Reflective light sensor Ultrasound PNP 50040190
EAN:
Part number:
Item no:
Product type
Reflective light sensor
Outputs
PNP
Model
Ultrasound
Type
50040190
Enclosure material
Aluminium
Technical specifications
- Product type
Reflective light sensor
- Type
50040190
- Outputs
PNP
- Model
Ultrasound
- Enclosure material
Aluminium
- Length
78 mm
- Width
40 mm
- Height
16.5 mm
- Dim
(L x W x H) 78 x 40 x 16.5 mm
DC
100 mA
5-5 °C
PNP
0 mA
10-10 V
16.5 mm
40 mm
78 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983922 Leuze Electronic Reflective light sensor Ultrasound PNP 50040190
Description
Physical principle: Ultrasound; application: Detection of non-transparent labels, detection of transparent labels; label width, min.: 10 mm; label gap, min.: 2 mm; Medium: transparent and not transparent; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, switching signal on label; switching output 2: Transistor, NPN, switch signal on label; connector: round plug, M8, 4 -pin; Plug outlet: horizontal (parallel to the belt run); jaw width: 2.5 mm; jaw depth: 48 mm; dimensions: 16.5 mm x 40 mm x 78 mm; material housing: metal, aluminum; operating elements: teach-button
