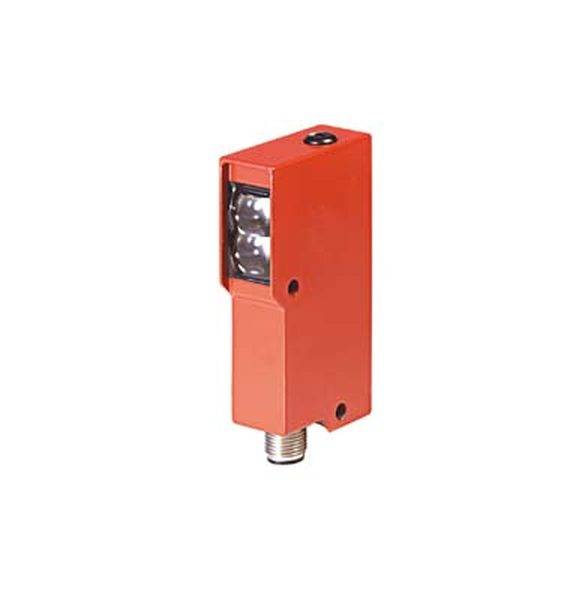

Leuze Electronic Retroreflective light barrier 50018778 50018778 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Switch (light-ON/dark-ON)
Type
50018778
Response time
1 ms
Outputs
PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50018778
- Functions
Switch (light-ON/dark-ON)
- Response time
1 ms
- Outputs
PNP
- Switching frequency
500 Hz
- Enclosure material
Metal
- Transmitter type
Red light, unpolarised
- Wavelength
660 nm
8500 mm
- Min. temperature
-20 °C
- Max. temperature
60 °C
- Length
42.2 mm
- Width
20 mm
- Height
80 mm
- Dim
(L x W x H) 42.2 x 20 x 80 mm
- Content
1 pc(s)
DC
Metal
FALSE
-20-60 °C
FALSE
500 Hz
2
Connector M12
PNP
Other
10-30 V
Safety class 2
None
None
Cuboid
None
Polarized red light
200 mm
FALSE
FALSE
1 ms
FALSE
660 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
20 mm
80 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
42.2 mm
8500 mm
FALSE
FALSE
Light-/dark switching
8500 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982763 Leuze Electronic Retroreflective light barrier 50018778 50018778 Switch (light-ON/dark-ON) 1 pc(s)
Description
Special version: Warning output; limit range: 0.2 ... 12.5 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light/dark switchable; switching output 2: Transistor, PNP, UB switching; switching frequency: 500 Hz; connection: round plug, M12, Metal, 5-pin; design housing: cubic; dimensions: 20 mm x 80 mm x 42.2 mm; material housing: metal; ambient temperature operation: -20 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50018778, please refer to its datasheet under 'downloadable documents'
