Name: Leuze Electronic Retroreflective light barrier 50020358 50020358 Switch (light-ON/dark-ON) 1 pc(s)
Brand: Leuze Electronic
SKU: 2982761

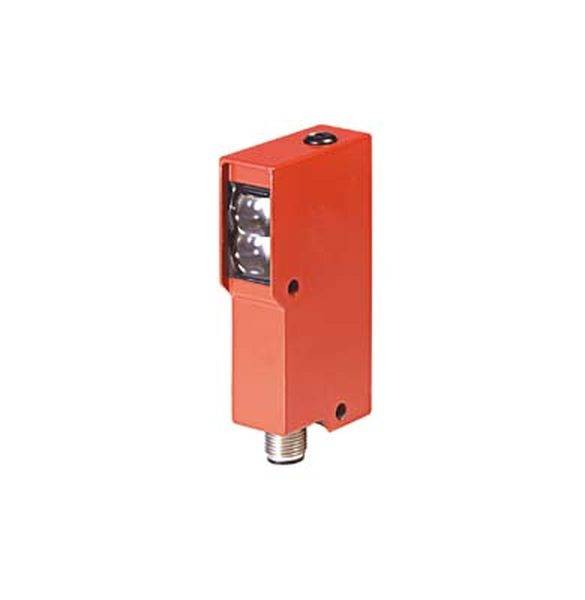

Red sensor with rectangular housing and threaded connection at the bottom, suitable for industrial applications for object detection.

Product type

Retroreflective light barrier

Functions

Switch (light-ON/dark-ON)

Connector

Plug

Type

50020358

Outputs

2x PNP

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50020358

Functions: Switch (light-ON/dark-ON)

Outputs: 2x PNP

Switching frequency: 500 Hz

Connector: Plug

Enclosure material: Metal

Transmitter type: LED red

: 12.5 m

Min. temperature: -20 °C

Max. temperature: 60 °C

Width: 20 mm

Height: 80 mm

Depth: 42.2 mm

Dim: (W x H x D) 20 x 80 x 42.2 mm

Content: 1 pc(s)

: DC

: Metal

: FALSE

: -20-60 °C

: FALSE

: 500 Hz

: 2

: Other

: PNP

: Other

: 10-30 V

: Safety class 1

: None

: None

: Cuboid

: None

: Polarized red light

: 200 mm

: FALSE

: FALSE

: 1 ms

: FALSE

: 660 nm

: Glass

: IP65

: FALSE

: FALSE

: FALSE

: FALSE

: 20 mm

: 80 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 42.2 mm

: 8500 mm

: FALSE

: FALSE

: Light-/dark switching

: 8500 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982761 Leuze Electronic Retroreflective light barrier 50020358 50020358 Switch (light-ON/dark-ON) 1 pc(s)

Description

Special version: Warning output; limit range: 0.2 ... 12.5 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light/dark switchable; switching output 2: Transistor, PNP, UB switching; switching frequency: 500 Hz; connection: standard plug, 6-pin; Design housing: cubic; dimensions: 20 mm x 80 mm x 42.2 mm; material housing: metal; ambient temperature operation: -20 ... 60 °C; protection class IP 65
