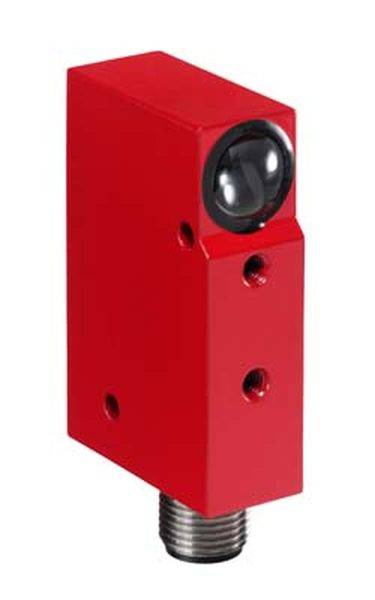

Leuze Electronic Retroreflective light barrier 50033552 50033552 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Switch (light-ON/dark-ON)
Type
50033552
Response time
0.5 ms
Outputs
PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50033552
- Functions
Switch (light-ON/dark-ON)
- Response time
0.5 ms
- Outputs
PNP
- Switching frequency
1000 Hz
- Enclosure material
Metal
- Transmitter type
LED red
- Wavelength
660 nm
3000 mm
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
33 mm
- Width
15 mm
- Height
50 mm
- Dim
(L x W x H) 33 x 15 x 50 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-25-55 °C
FALSE
1000 Hz
2
Connector M12
PNP
Other
10-30 V
Safety class 3
Manual adjustment
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
0.5 ms
FALSE
660 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
50 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
33 mm
3000 mm
FALSE
FALSE
Light-/dark switching
3000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982377 Leuze Electronic Retroreflective light barrier 50033552 50033552 Switch (light-ON/dark-ON) 1 pc(s)
Description
Application: Detection of highly transparent bottles, detection of highly transparent films and glass panes; special version: Auto-collimation, tracking function, warning output; limit range: 0 ... 4 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, dark switching; switching output 2: Transistor, PNP, UB switching; switching frequency: 1,000 Hz; connection: round plug, M12, Stainless steel, 5-pole; housing design: cubic; dimensions: 15 mm x 50 mm x 33 mm; material housing: metal; operating elements: step switch; ambient temperature operation: -25 ... 55 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50033552, please refer to its datasheet under 'downloadable documents'
