Name: Leuze Electronic Retroreflective light barrier 50034511 50034511 Light-ON 1 pc(s)
Brand: Leuze Electronic
SKU: 2982750

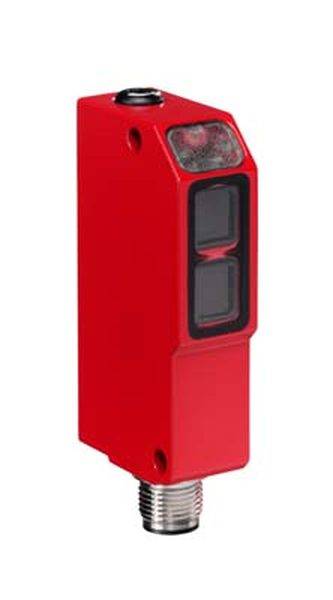

A red sensor with a rectangular housing and two black lasers, suitable for industrial applications in object detection.

Product type

Retroreflective light barrier

Functions

Light-ON

Type

50034511

Response time

0.5 ms

Outputs

PNP

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50034511

Functions: Light-ON

Response time: 0.5 ms

Outputs: PNP

Switching frequency: 1000 Hz

Enclosure material: Metal

Transmitter type: Red light, unpolarised

Wavelength: 660 nm

: 6 m

Min. temperature: -25 °C

Max. temperature: 60 °C

Length: 35 mm

Width: 17 mm

Height: 66 mm

Depth: 35 mm

Dim: (L x W x H) 35 x 17 x 66 mm

Content: 1 pc(s)

: DC

: 100 mA

: Metal

: FALSE

: -25-60 °C

: FALSE

: 1000 Hz

: 2

: Connector M12

: PNP

: Other

: 10-30 V

: Safety class 2

: None

: None

: Cuboid

: None

: Polarized red light

: 0 mm

: FALSE

: FALSE

: 0.5 ms

: FALSE

: 660 nm

: Glass

: IP67

: FALSE

: FALSE

: FALSE

: FALSE

: 17 mm

: 66 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 35 mm

: 6000 mm

: FALSE

: FALSE

: Light switching

: 6000 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982750 Leuze Electronic Retroreflective light barrier 50034511 50034511 Light-ON 1 pc(s)

Description

Special version: Auto collimation; limit range: 0 ... 6 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,000 Hz; connection: round plug, M12, Stainless steel, 4-pole; design: cubic; dimensions: 17 mm x 66 mm x 35 mm; material housing: metal; ambient temperature operation: -25 ... 60 °C; protection class IP 67

This text is machine translated.
