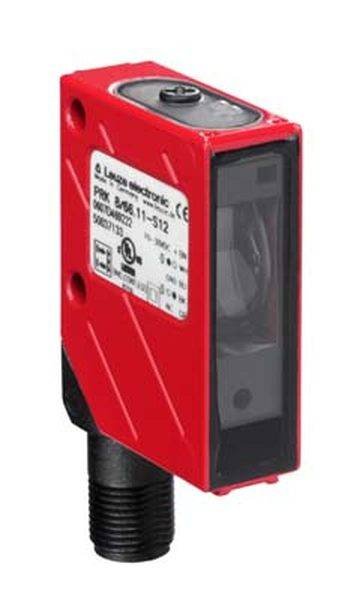

Leuze Electronic Retroreflective light barrier 50036360 50036360 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Type
50036360
Response time
0.33 ms
Contact type
Antivalent
Outputs
2x PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50036360
- Response time
0.33 ms
- Contact type
Antivalent
- Outputs
2x PNP
- Switching frequency
1500 Hz
- Enclosure material
Metal
- Transmitter type
Red light, polarised
- Wavelength
660 nm
8 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
38 mm
- Width
15 mm
- Height
48 mm
- Depth
38 mm
- Dim
(L x W x H) 38 x 15 x 48 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
1500 Hz
2
Connector M12
PNP/PNP
Anticoincidence
10-30 V
Safety class 2
None
None
Cuboid
None
Polarized red light
100 mm
FALSE
FALSE
0.33 ms
FALSE
660 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
48 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
38 mm
6400 mm
FALSE
FALSE
Light-/dark switching
6400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982379 Leuze Electronic Retroreflective light barrier 50036360 50036360 1 pc(s)
Description
Limit range: 0.1 ... 8 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,500 Hz; connection: round plug, M12, Metal, 5-pin, rotatable 90°; design housing: cubic; dimensions: 15 mm x 48 mm x 38 mm; material housing: metal; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50036360, please refer to its datasheet under 'downloadable documents'
