Name: Leuze Electronic Retroreflective light barrier 50036365 50036365 Switch (light-ON/dark-ON) 1 pc(s)
Brand: Leuze Electronic
SKU: 2982383

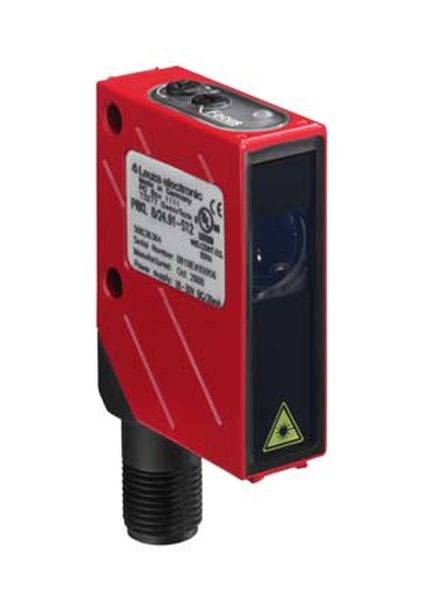

A rectangular, red sensor with laser markings and a sticker displaying technical information. Used for precision measurements.

Product type

Retroreflective light barrier

Functions

Switch (light-ON/dark-ON)

Type

50036365

Response time

0.18 ms

Switching frequency

2.800 Hz

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50036365

Functions: Switch (light-ON/dark-ON)

Response time: 0.18 ms

Switching frequency: 2.800 Hz

Cable length: 2.000 mm

Enclosure material: Metal

Transmitter type: SC laser red

Laser class: 2

Wavelength: 670 nm

: 21 m

Min. temperature: -10 °C

Max. temperature: 40 °C

Length: 38 mm

Width: 15 mm

Height: 48 mm

Dim: (L x W x H) 38 x 15 x 48 mm

Content: 1 pc(s)

: DC

: 100 mA

: Metal

: FALSE

: -10-40 °C

: FALSE

: 2800 Hz

: 2

: Cable

: PNP/NPN

: Other

: 10-30 V

: Safety class 2

: Manual adjustment

: None

: None

: Cuboid

: Class 2

: Polarized red light

: 0 mm

: FALSE

: FALSE

: 0.18 ms

: FALSE

: 670 nm

: Glass

: IP67

: FALSE

: FALSE

: FALSE

: FALSE

: 15 mm

: 48 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 38 mm

: 19000 mm

: FALSE

: FALSE

: Light-/dark switching

: 19000 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982383 Leuze Electronic Retroreflective light barrier 50036365 50036365 Switch (light-ON/dark-ON) 1 pc(s)

Description

Special version: Auto collimation; limit range: 0 ... 21 m; light source: Laser, red; protection class: 2; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, NPN, light-switching; switching frequency: 2,800 Hz; connection: line, 2,000 mm, 5-wire; design housing: cubic; dimensions: 15 mm x 48 mm x 38 mm; material housing: metal; operating elements: multi-turn potentiometer; ambient temperature operation: -10 ... 40 °C; PROTECTION CLASS IP 67, IP 69K
