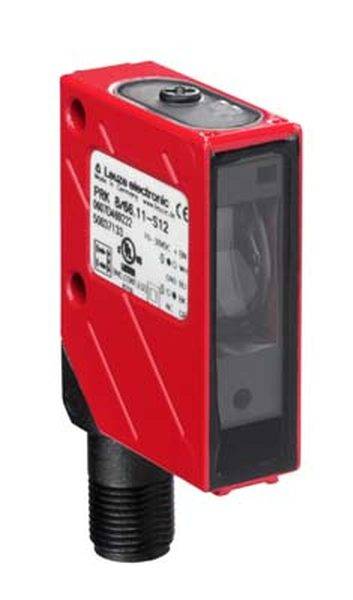

Leuze Electronic Retroreflective light barrier 50037133 50037133 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50037133
Response time
0.33 ms
Contact type
Antivalent
Technical specifications
- Product type
Retroreflective light barrier
- Type
50037133
- Functions
Light-ON
- Response time
0.33 ms
- Contact type
Antivalent
- Outputs
PNP Antivalent
- Switching frequency
1500 Hz
- Enclosure material
Metal
- Transmitter type
LED red
- Wavelength
660 nm
7 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
38 mm
- Width
15 mm
- Height
48 mm
- Depth
38 mm
- Dim
(L x W x H) 38 x 15 x 48 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
1500 Hz
2
Connector M12
Other
Anticoincidence
10-30 V
Safety class 2
Manual adjustment
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
0.33 ms
FALSE
660 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
48 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
38 mm
5000 mm
FALSE
FALSE
Light-/dark switching
5000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982385 Leuze Electronic Retroreflective light barrier 50037133 50037133 Light-ON 1 pc(s)
Description
Special version: Auto collimation; limit range: 0 ... 7 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, push-pull, light-switching (PNP)/dark-switching (NPN); switching output 2: Transistor, Push-pull, dark-switching (PNP)/light-switching (NPN); switching frequency: 1,500 Hz; connection: round plug, M12, Metal, 5-pole, rotatable 90°; design housing: cubic; dimensions: 15 mm x 48 mm x 38 mm; material housing: metal; controls: multi-turn potentiometer; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50037133, please refer to its datasheet under 'downloadable documents'
