Name: Leuze Electronic Retroreflective light barrier 50080723 50080723 w/o timer 1 pc(s)
Brand: Leuze Electronic
SKU: 2982743

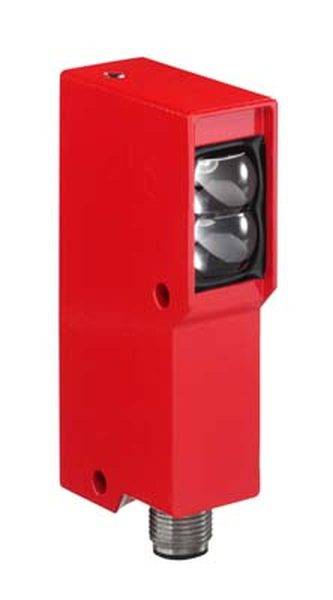

Red light photoelectric sensor with a rectangular housing and lens configuration, suitable for industrial applications for object detection.

Product type

Retroreflective light barrier

Functions

w/o timer

Type

50080723

Response time

0 ms

Outputs

NAMUR

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50080723

Functions: w/o timer

Response time: 0 ms

Outputs: NAMUR

Switching frequency: 60 Hz

Enclosure material: Metal

Transmitter type: Red light, unpolarised

Wavelength: 0 nm

: 5 m

Min. temperature: -20 °C

Max. temperature: 50 °C

Length: 42.2 mm

Width: 20 mm

Height: 80 mm

Dim: (L x W x H) 42.2 x 20 x 80 mm

Content: 1 pc(s)

: DC

: Metal

: FALSE

: -20-50 °C

: FALSE

: 60 Hz

: Connector M12

: Other

: 5.5-13 V

: Safety class 2

: ATEX gas-ex-protection, Cat. 2G

: ATEX dust-ex-protection, Cat. 2D

: Cuboid

: None

: Polarized red light

: 200 mm

: FALSE

: FALSE

: FALSE

: Glass

: IP67

: FALSE

: FALSE

: FALSE

: FALSE

: 20 mm

: 80 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 42.2 mm

: 5000 mm

: FALSE

: FALSE

: 5000 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982743 Leuze Electronic Retroreflective light barrier 50080723 50080723 w/o timer 1 pc(s)

Description

Limit range: 0.2 ... 5 m; light source: LED, red; switching frequency: 60 Hz; supply voltage: 5.5 ... 13 V, DC; port: NAMUR; connection: Circular plug, M12, Metal, 4-pin; design housing: cubic; dimensions: 20 mm x 80 mm x 42.2 mm; material housing: metal; ambient temperature operation: -20 ... 50 °C; Ex device category 2; Ex zone 1, 21; protection class IP 67; Special version: Ex-proof

This text is machine translated.
