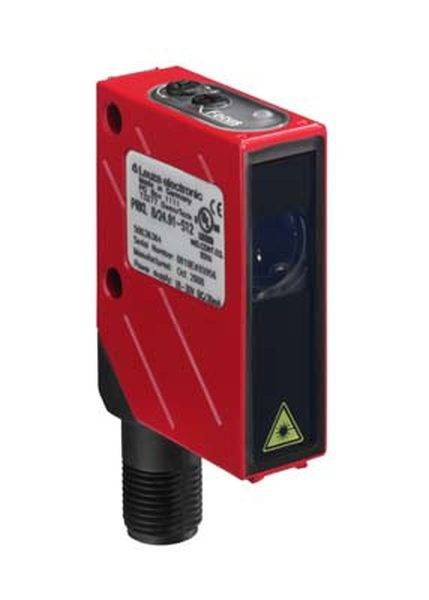

Leuze Electronic Retroreflective light barrier 50115689 50115689 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50115689
Response time
0.18 ms
Outputs
PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50115689
- Functions
Light-ON
- Response time
0.18 ms
- Outputs
PNP
- Switching frequency
2800 Hz
- Enclosure material
Metal
- Laser class
1
- Wavelength
670 nm
14 m
- Min. temperature
-10 °C
- Max. temperature
40 °C
- Length
38 mm
- Width
15 mm
- Height
48 mm
- Dim
(L x W x H) 38 x 15 x 48 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-10-40 °C
FALSE
2800 Hz
2
Connector M12
PNP
Other
10-30 V
Safety class 2
Manual adjustment
None
None
Cuboid
Class 1
Laser diode, red light
0 mm
FALSE
FALSE
0.18 ms
FALSE
670 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
48 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
38 mm
12000 mm
FALSE
FALSE
Light switching
12000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982626 Leuze Electronic Retroreflective light barrier 50115689 50115689 Light-ON 1 pc(s)
Description
Special version: Auto collimation; limit range: 0 ... 14 m; light source: Laser, red; protection class: 1; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, NPN, light switch; switching frequency: 2,800 Hz; connection: round plug, M12, Metal, 5-pole, rotatable 90°; design housing: cubic; dimensions: 15 mm x 48 mm x 38 mm; material housing: metal; controls: multi-turn potentiometer; ambient temperature operation: -10 ... 40 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50115689, please refer to its datasheet under 'downloadable documents'
