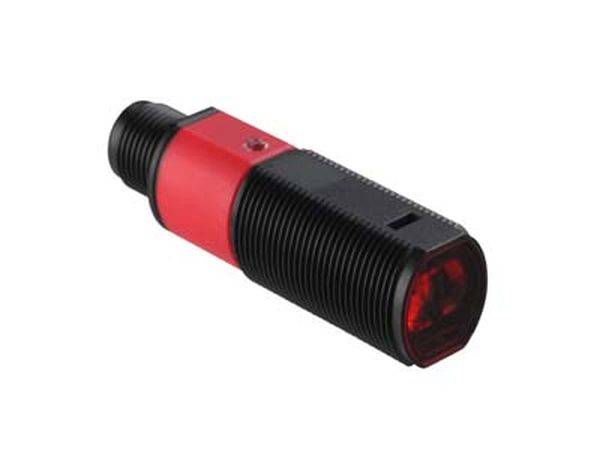

Leuze Electronic Retroreflective light barrier 50116859 50116859 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50116859
Switching frequency
500 Hz
Size
M18
Technical specifications
- Product type
Retroreflective light barrier
- Type
50116859
- Functions
Light-ON
- Switching frequency
500 Hz
- Size
M18
- Enclosure material
Plastic
- Transmitter type
LED red
6 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
46 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 46 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
500 Hz
2
Connector M12
PNP/PNP
Anticoincidence
10-30 V
Safety class 3
None
None
Cylinder, screw-thread
None
Polarized red light
20 mm
FALSE
FALSE
1 ms
FALSE
620 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
46 mm
4500 mm
FALSE
FALSE
Light-/dark switching
4500 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982389 Leuze Electronic Retroreflective light barrier 50116859 50116859 Light-ON 1 pc(s)
Description
Limit range: 0.02 ... 6 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 500 Hz; connection: round plug, M12, Plastic, 4-pin; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 46 mm; material housing: plastic; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50116859, please refer to its datasheet under 'downloadable documents'
