Name: Leuze Electronic Retroreflective light barrier 50116861 50116861 Light-ON 1 pc(s)
Brand: Leuze Electronic
SKU: 2982622

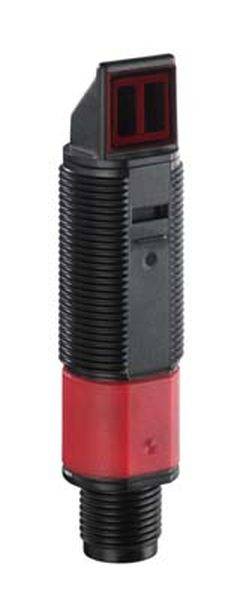

A cylindrical black and red connector with a ribbed surface, suitable for electrical applications.

Product type

Retroreflective light barrier

Functions

Light-ON

Type

50116861

Response time

1 ms

Outputs

NPN

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50116861

Functions: Light-ON

Response time: 1 ms

Outputs: NPN

Switching frequency: 500 Hz

Size: M18

Enclosure material: Plastic

Transmitter type: Red light, unpolarised

Light emission: 90 degree angled

Wavelength: 620 nm

: 4000 mm

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 60.4 mm

(Ø): 18 mm

Dim: (Ø x L) 18 mm x 60.4 mm

Content: 1 pc(s)

: DC

: 100 mA

: Plastic

: FALSE

: -40-60 °C

: FALSE

: 500 Hz

: 2

: Connector M12

: NPN

: Other

: 10-30 V

: Safety class 3

: None

: None

: Cylinder, screw-thread

: None

: Polarized red light

: 20 mm

: FALSE

: FALSE

: 1 ms

: FALSE

: 620 nm

: Plastic

: IP67

: FALSE

: FALSE

: FALSE

: FALSE

: 18 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 60.4 mm

: 4000 mm

: FALSE

: FALSE

: Light switching

: 4000 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982622 Leuze Electronic Retroreflective light barrier 50116861 50116861 Light-ON 1 pc(s)

Description

Special version: 90° - angular optics; limit range: 0.02 ... 5 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, NPN, light-switching; switching output 2: Transistor, NPN, dark switching; switching frequency: 500 Hz; connection: round plug, M12, Plastic, 4-pin; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 60.4 mm; material housing: plastic; ambient temperature operation: -40 ... 60 °C; protection class IP 67
