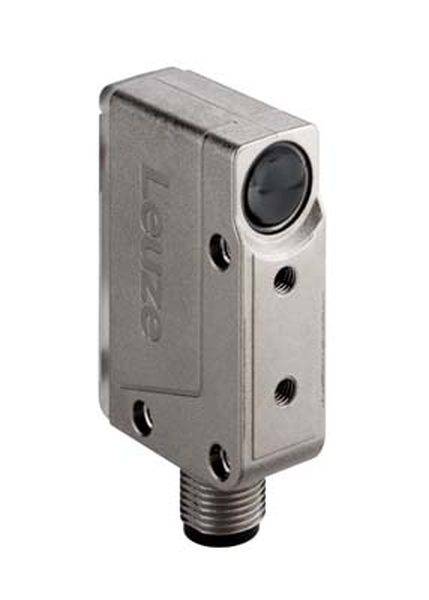

Leuze Electronic Retroreflective light barrier 50117359 50117359 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50117359
Response time
1 ms
Outputs
PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50117359
- Functions
Light-ON
- Response time
1 ms
- Outputs
PNP
- Switching frequency
500 Hz
- Enclosure material
Metal
- Transmitter type
LED red
- Wavelength
620 nm
6000 mm
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
32.5 mm
- Width
15 mm
- Height
47 mm
- Dim
(L x W x H) 32.5 x 15 x 47 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
500 Hz
2
Connector M12
PNP
Other
10-30 V
Safety class 3
Manual adjustment
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
1 ms
FALSE
620 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
47 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
32.5 mm
6000 mm
FALSE
FALSE
Light switching
6000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982571 Leuze Electronic Retroreflective light barrier 50117359 50117359 Light-ON 1 pc(s)
Description
Hints
For more information on this 50117359, please refer to its datasheet under 'downloadable documents'
