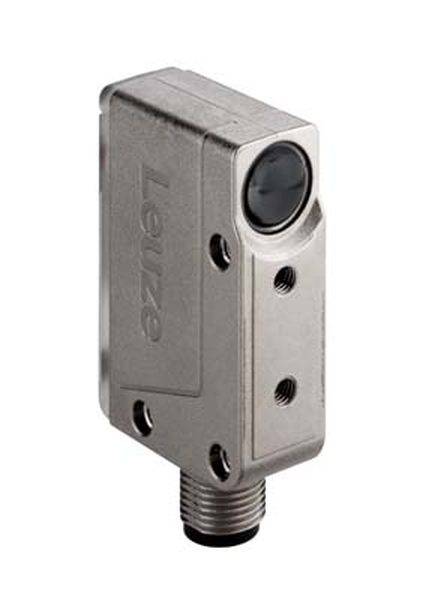

Leuze Electronic Retroreflective light barrier 50117361 50117361 Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Dark-ON
Type
50117361
Response time
0.333 ms
Outputs
PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50117361
- Functions
Dark-ON
- Response time
0.333 ms
- Outputs
PNP
- Switching frequency
1500 Hz
- Enclosure material
Metal
- Transmitter type
LED red
- Wavelength
620 nm
4000 mm
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
32.5 mm
- Width
15 mm
- Height
47 mm
- Dim
(L x W x H) 32.5 x 15 x 47 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3020354 Leuze Electronic Retroreflective light barrier 50117361 50117361 Dark-ON 1 pc(s)
Description
Application: Detection of highly transparent bottles, detection of highly transparent films and glass panes; special version: Auto collimation; limit range: 0 ... 4.8 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, dark switching; switching frequency: 1,500 Hz; Connection: round plug, M12, metal, 4-pin; design housing: cubic; Dimensions: 15 mm x 47 mm x 32.5 mm; material housing: metal; controls: multi-turn potentiometer; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50117361, please refer to its datasheet under 'downloadable documents'
