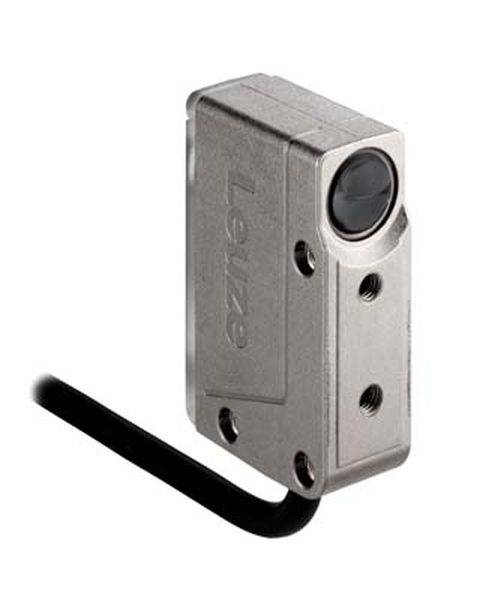

Leuze Electronic Retroreflective light barrier 50117372 50117372 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50117372
Response time
0.333 ms
Outputs
NPN
Technical specifications
- Product type
Retroreflective light barrier
- Type
50117372
- Functions
Light-ON
- Response time
0.333 ms
- Outputs
NPN
- Switching frequency
500 Hz
- Cable length
6.000 mm
- Enclosure material
Metal
- Transmitter type
LED red
- Wavelength
620 nm
6000 mm
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
32.5 mm
- Width
15 mm
- Height
47 mm
- Dim
(L x W x H) 32.5 x 15 x 47 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
500 Hz
2
Cable
NPN
Other
10-30 V
Safety class 3
Manual adjustment
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
0.333 ms
FALSE
620 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
47 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
32.5 mm
6000 mm
FALSE
FALSE
Light switching
6000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982788 Leuze Electronic Retroreflective light barrier 50117372 50117372 Light-ON 1 pc(s)
Description
Application: Operation with glass-tripel reflectors and any reflection films; special design: Auto-collimation; limit range: 0 ... 7.2 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, NPN, light-switching; switching output 2: Transistor, NPN, dark switching; switching frequency: 500 Hz; connection: line, 6,000 mm, 4-wire; design housing: cubic; dimensions: 15 mm x 47 mm x 32.5 mm; material housing: metal; operating elements: 270° potentiometer; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50117372, please refer to its datasheet under 'downloadable documents'
