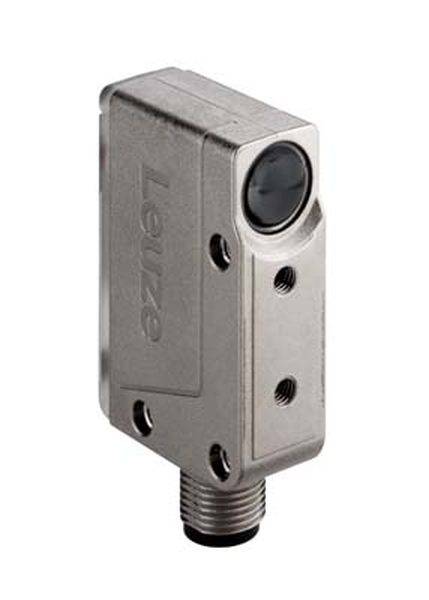

Leuze Electronic Retroreflective light barrier 50124943 50124943 Clear object detection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Clear object detection
Type
50124943
Response time
0.333 ms
Outputs
PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50124943
- Functions
Clear object detection
- Response time
0.333 ms
- Outputs
PNP
- Switching frequency
1500 Hz
- Enclosure material
Metal
- Transmitter type
LED red
- Wavelength
620 nm
3.6 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
32.5 mm
- Width
15 mm
- Height
47 mm
- Dim
(L x W x H) 32.5 x 15 x 47 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
1500 Hz
2
Connector M12
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
0.333 ms
FALSE
620 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
47 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
32.5 mm
3000 mm
FALSE
FALSE
Light switching
3000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982921 Leuze Electronic Retroreflective light barrier 50124943 50124943 Clear object detection 1 pc(s)
Description
Application: Detection of highly transparent bottles, detection of highly transparent films and glass panes; special version: Auto collimation, tracking function; limit range: 0 ... 3.6 m; light source: LED, red; error angle: Optical axis aligned, <±0.25°; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,500 Hz; connection: round plug, M12, Metal, 4-pole; design: cubic; dimensions: 15 mm x 47 mm x 32.5 mm; material housing: metal; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50124943, please refer to its datasheet under 'downloadable documents'
