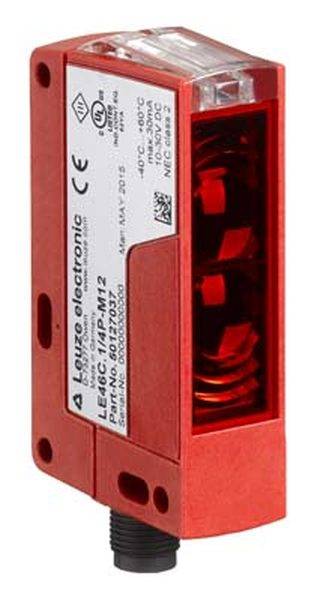

Leuze Electronic Retroreflective light barrier 50127016 50127016 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50127016
Operating voltage
30 V DC
Response time
1 ms
Technical specifications
- Product type
Retroreflective light barrier
- Type
50127016
- Functions
Light-ON
- Operating voltage
30 V DC
- Response time
1 ms
- Outputs
PNP
- Switching frequency
500 Hz
- Enclosure material
Plastic
- Transmitter type
Red light, unpolarised
- Wavelength
630 nm
30 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
44 mm
- Width
20.5 mm
- Height
76.3 mm
- Dim
(L x W x H) 44 x 20.5 x 76.3 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
500 Hz
1
1
Connector M12
PNP
Other
10-30 V
Safety class 3
None
None
Cuboid
None
Polarized red light
100 mm
FALSE
FALSE
1 ms
FALSE
630 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
20.5 mm
76.3 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
44 mm
24000 mm
FALSE
FALSE
Light switching
24000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982914 Leuze Electronic Retroreflective light barrier 50127016 50127016 Light-ON 1 pc(s)
Description
Special version: Activation input; limit range: 0.1 ... 30 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, light-switching; switching frequency: 500 Hz; Connection: round plug, M12, plastic, 4 -pin; design housing: cubic; Dimensions: 20.5 mm x 76.3 mm x 44 mm; material housing: plastic; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50127016, please refer to its datasheet under 'downloadable documents'
