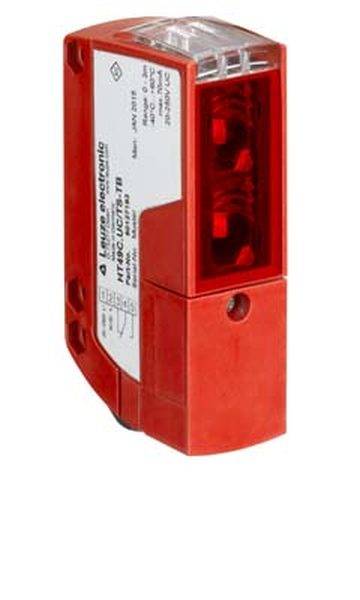

Leuze Electronic Retroreflective light barrier 50127424 50127424 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Switch (light-ON/dark-ON)
Type
50127424
Response time
3.3 ms
Contact type
1 maker
Technical specifications
- Product type
Retroreflective light barrier
- Type
50127424
- Functions
Switch (light-ON/dark-ON)
- Response time
3.3 ms
- Contact type
1 maker
- Outputs
N-channel MOSFET
- Switching frequency
150 Hz
- Cable length
2.000 mm
- Enclosure material
Plastic
- Transmitter type
Red light, unpolarised
- Wavelength
630 nm
30 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
55.5 mm
- Width
31 mm
- Height
104 mm
- Depth
55.5 mm
- Dim
(L x W x H) 55.5 x 31 x 104 mm
- Content
1 pc(s)
AC/DC
400 mA
Plastic
FALSE
-40-60 °C
FALSE
150 Hz
1
Cable
Other
20-250 V
20-250 V
Safety class 2
Teach-In
None
None
Cuboid
None
Polarized red light
300 mm
FALSE
FALSE
3.3 ms
FALSE
630 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
31 mm
104 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
55.5 mm
24000 mm
FALSE
FALSE
Light-/dark switching
24000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982942 Leuze Electronic Retroreflective light barrier 50127424 50127424 Switch (light-ON/dark-ON) 1 pc(s)
Description
Limit range: 0.1 ... 30 m; light source: LED, red; supply voltage: 20 ... 250 V, AC/DC; Digital switching output: 1 pieces; switching output 1: MOSFET-semiconductor, closer (NO), bright/dark switchable; switching frequency: 150 Hz; Connection: cable, 2,000 mm, 5-wire; housing design: cubic; dimensions: 31 mm x 104 mm x 55.5 mm; material housing: plastic; operating elements: teach-button, 270° potentiometer; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50127424, please refer to its datasheet under 'downloadable documents'
