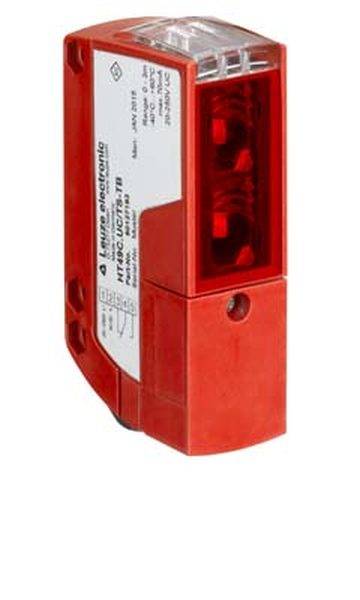

Leuze Electronic Retroreflective light barrier 50127426 50127426 Clear object detection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Clear object detection
Connector
Clip
Type
50127426
Response time
20 ms
Technical specifications
- Product type
Retroreflective light barrier
- Type
50127426
- Functions
Clear object detection
- Response time
20 ms
- Outputs
Relay
- Switching frequency
25 Hz
- Connector
Clip
- Enclosure material
Plastic
- Transmitter type
LED red
- Wavelength
630 nm
16000 mm
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
55.5 mm
- Width
31 mm
- Height
104 mm
- Dim
(L x W x H) 55.5 x 31 x 104 mm
- Content
1 pc(s)
AC/DC
2500 mA
Plastic
FALSE
-40-60 °C
FALSE
25 Hz
2
Clamp
Other
20-250 V
20-250 V
Safety class 2
Teach-In
None
None
Cuboid
None
Polarized red light
100 mm
FALSE
FALSE
20 ms
FALSE
630 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
31 mm
104 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
55.5 mm
16000 mm
FALSE
FALSE
Light-/dark switching
16000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982941 Leuze Electronic Retroreflective light barrier 50127426 50127426 Clear object detection 1 pc(s)
Description
Application: Detection of cylinder containers, detection of transparent films; limit range: 0.1 ... 20 m; light source: LED, red; supply voltage: 20 ... 250 V, AC/DC; Digital switching output: 2 pieces; Switching output 1: Relay, opener, light/dark switchable; Switching output 2: Relay, NO, light/dark switchable; switching frequency: 25 Hz; connection: terminal, 5 pole Design housing: cubic; dimensions: 31 mm x 104 mm x 55.5 mm; material housing: plastic; operating elements: teach-button, 270° potentiometer; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50127426, please refer to its datasheet under 'downloadable documents'
