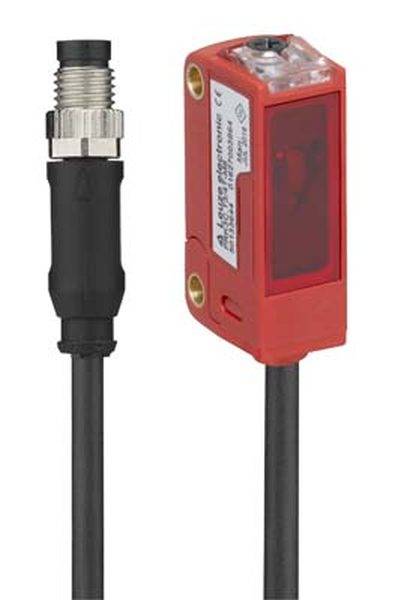

Leuze Electronic Retroreflective light barrier 50133643 50133643 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50133643
Operating voltage
30 V DC
Response time
0.33 ms
Technical specifications
- Product type
Retroreflective light barrier
- Type
50133643
- Functions
Light-ON
- Operating voltage
30 V DC
- Response time
0.33 ms
- Outputs
PNP
- Switching frequency
1500 Hz
- Cable length
200 mm
- Enclosure material
Plastic
- Transmitter type
LED red
- Wavelength
635 nm
4000 mm
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
18.3 mm
- Width
11.4 mm
- Height
34.2 mm
- Dim
(L x W x H) 18.3 x 11.4 x 34.2 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
1500 Hz
2
Connector M8
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
0.33 ms
FALSE
635 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
11.4 mm
34.2 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
18.3 mm
4000 mm
FALSE
FALSE
Light switching
4000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982826 Leuze Electronic Retroreflective light barrier 50133643 50133643 Light-ON 1 pc(s)
Description
Hints
For more information on this 50133643, please refer to its datasheet under 'downloadable documents'
