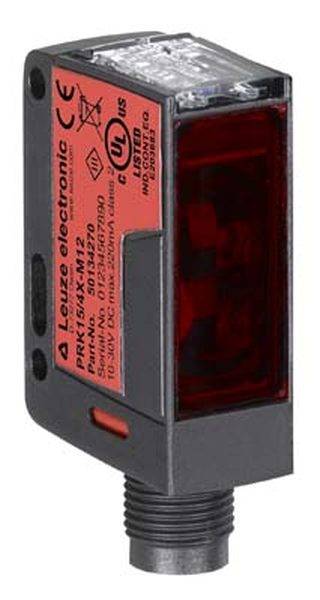

Leuze Electronic Retroreflective light barrier 50134378 50134378 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Light-ON
Type
50134378
Response time
1 ms
Contact type
1 PNP
Technical specifications
- Product type
Retroreflective light barrier
- Type
50134378
- Functions
Light-ON
- Response time
1 ms
- Contact type
1 PNP
- Outputs
PNP
- Switching frequency
500 Hz
- Enclosure material
Plastic
- Transmitter type
LED red
- Wavelength
640 nm
6000 mm
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
30 mm
- Width
15 mm
- Height
42.7 mm
- Dim
(L x W x H) 30 x 15 x 42.7 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
500 Hz
1
Connector M12
PNP
Other
10-30 V
Safety class 3
Manual adjustment
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
1 ms
FALSE
640 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
15 mm
42.7 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
30 mm
6000 mm
FALSE
FALSE
Light switching
6000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982777 Leuze Electronic Retroreflective light barrier 50134378 50134378 Light-ON 1 pc(s)
Description
Application: Detection of terrestrial objects; limit range: 0 ... 8 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, light-switching; switching frequency: 500 Hz; Connection: round plug, M12, plastic, 4 -pin; design housing: cubic; Dimensions: 15 mm x 42.7 mm x 30 mm; material housing: plastic; controls: 270° potentiometer; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50134378, please refer to its datasheet under 'downloadable documents'
