Name: Leuze Electronic Retroreflective light barrier 50134568 50134568 Teach-in 1 pc(s)
Brand: Leuze Electronic
SKU: 2982765

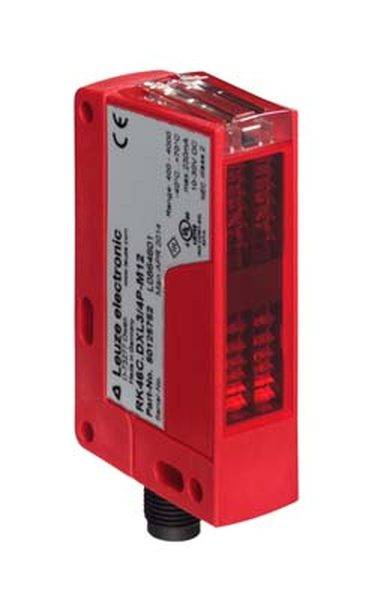

Red optical sensor with CE marking and technical specifications on the side. Used for automatic detection systems.

Product type

Retroreflective light barrier

Functions

Teach-in

Type

50134568

Operating voltage

30 V DC

Response time

2 ms

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50134568

Functions: Teach-in

Operating voltage: 30 V DC

Response time: 2 ms

Outputs: PNP Antivalent

Switching frequency: 250 Hz

Enclosure material: Plastic

Transmitter type: LED red

Wavelength: 620 nm

: 5.2 m

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 44 mm

Width: 20.5 mm

Height: 76.3 mm

Dim: (L x W x H) 44 x 20.5 x 76.3 mm

Content: 1 pc(s)

Smallest detectable object size (diameter): 2 mm

: DC

: 100 mA

: Plastic

: FALSE

: -40-60 °C

: FALSE

: 250 Hz

: 2

: Connector M12

: PNP

: Other

: 10-30 V

: Safety class 3

: Teach-In

: None

: None

: Cuboid

: None

: Polarized red light

: 400 mm

: FALSE

: FALSE

: 2 ms

: FALSE

: 620 nm

: Plastic

: Other

: FALSE

: FALSE

: FALSE

: FALSE

: 20.5 mm

: 76.3 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 44 mm

: 4000 mm

: FALSE

: FALSE

: Light switching

: 4000 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982765 Leuze Electronic Retroreflective light barrier 50134568 50134568 Teach-in 1 pc(s)

Description

Application: Detection of broken objects, detection of displaced objects, detection of small parts, detection of transparent objects; special design: Extra long light spot (XL); limit range: 0.4 ... 5.2 m; coverage area: Light band 24-50 mm; light source: LED, red; minimum object size: 2 mm; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 250 Hz; connection: round plug, M12, Plastic, 4-pin; design housing: cubic; dimensions: 20.5 mm x 76.3 mm x 44 mm; material housing: plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 69K, IP 67

This text is machine translated.
