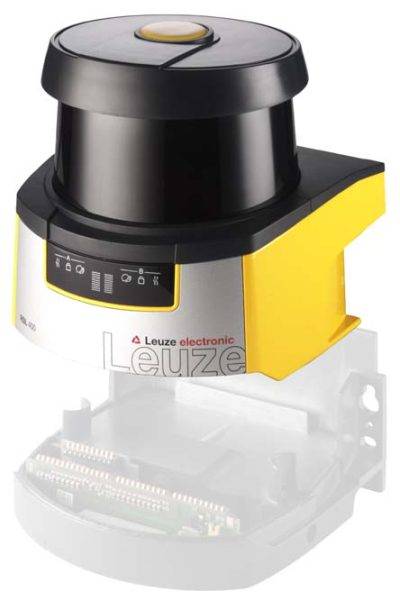

Leuze Electronic Safety laser scanner 53800113 Range (max.) 8.25 m 24 V DC
EAN:
Part number:
Item no:
Product type
Safety laser scanner
Type
53800113
Model
Lidar
Range of uses
PPE
Operating voltage
24 V DC
Technical specifications
- Product type
Safety laser scanner
- Type
53800113
- Model
Lidar
- Range of uses
PPE
- Operating voltage
24 V DC
- Transmitter type
Laser diode
- Range (min.)
0 m
- Range (max.)
8.25 m
- Outputs
PNP
- Performance level
PL d
- Safety integrity level
SIL 2
- Content
1 pc(s)
DC
TRUE
0-50 °C
0.09 Hz
1
2
PNP
Other
Safety class 3
TRUE
Class 1
FALSE
FALSE
50 m
0 m
0 m
20.8 V
3
TRUE
905 nm
140 mm
149 mm
140 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982728 Leuze Electronic Safety laser scanner 53800113 Range (max.) 8.25 m 24 V DC
Description
Type 3, IEC/EN 61496; SIL: 2, IEC 61508; Performance Level (PL): D, EN ISO 13849-1; Angle range: 270 °; Number of field pairs, switchable: 1; Number of protection functions: 1 pcs.; Range: 0 ... 8.25 m; Range of warning field: 0 ... 20 m; supply voltage: 24 V, DC, -15 ... 15 %; safety switching outputs (OSSDs): 2 pc., transistor, PNP; dimension: 140 mm x 149 mm x 140 mm
