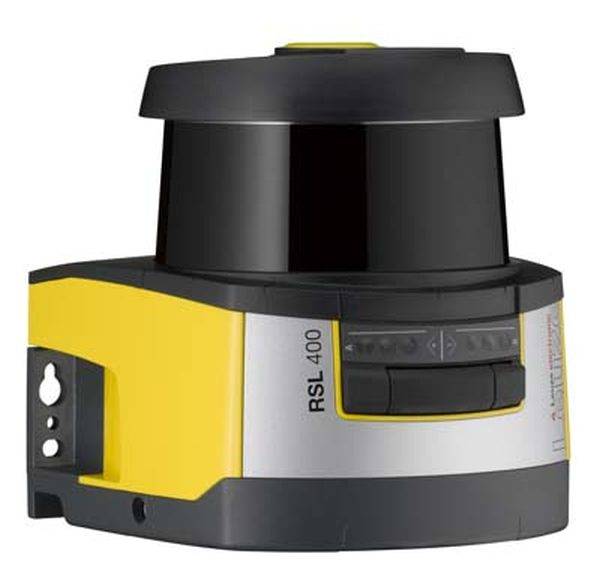

Leuze Electronic Safety laser scanner 53800246 Range (max.) 4.5 m 24 V DC
EAN:
Part number:
Item no:
Product type
Safety laser scanner
Length
140.2 mm
Height
140.3 mm
Type
53800246
Operating voltage
24 V DC
Technical specifications
- Product type
Safety laser scanner
- Type
53800246
- Operating voltage
24 V DC
- Cable length
450 mm
- Range (min.)
0 m
- Range (max.)
4.5 m
- Outputs
PNP
- Performance level
PL d
- Safety integrity level
SIL 2
- Safety rating
3
- Content
1 pc(s)
- Length
140.2 mm
- Width
148.6 mm
- Height
140.3 mm
- Dim
(L x W x H) 140.2 x 148.6 x 140.3 mm
DC
TRUE
0-50 °C
0.09 Hz
1
2
PNP
Cable with connector
Safety class 3
TRUE
Class 1
FALSE
FALSE
50 m
0 m
0 m
20.8 V
3
TRUE
905 nm
140.2 mm
148.6 mm
140.3 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982653 Leuze Electronic Safety laser scanner 53800246 Range (max.) 4.5 m 24 V DC
Description
Special version: RS4 substitute; type: 3, IEC/EN 61496; SIL: 2, IEC 61508; Performance Level (PL): d, EN ISO 13849-1; Angle range: 270 °; Number of field pairs, switchable: 1; Number of protection functions: 1 pcs.; Range: 0 ... 4.5 m; Range of warning field: 0 ... 20 m; supply voltage: 24 V, DC, -30 ... 20%; safety switching outputs (OSSDs): 2 pc., transistor, PNP; port 1: Line with sub-D, 15 -pin, 450 mm, PUR; port 2: Round plug, M12, 4-pole; dimensions 140.2 mm x 148.6 mm x 140.3 mm
