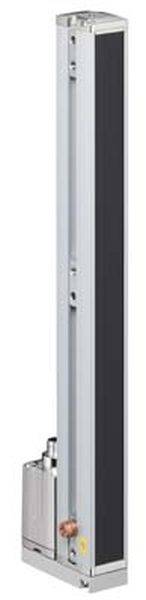

Leuze Electronic Safety light barrier 50119450 Range (max.) 3.5 m Protective field height 160 mm
EAN:
Part number:
Item no:
Product type
Safety light barrier
Length
35.4 mm
Height
183 mm
Type
50119450
Response time
1.36 ms
Technical specifications
- Product type
Safety light barrier
- Type
50119450
- Response time
1.36 ms
- Range (min.)
0.1 m
- Range (max.)
3.5 m
- Beam spacing
5 mm
- Protective field height
160 mm
- Total height
183 mm
- Content
1 pc(s)
- Length
35.4 mm
- Width
29 mm
- Height
183 mm
- Dim
(L x W x H) 35.4 x 29 x 183 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Transmitter
FALSE
FALSE
FALSE
FALSE
FALSE
3.5 m
160 mm
TRUE
940 nm
IP65
5 mm
29 mm
35.4 mm
183 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983047 Leuze Electronic Safety light barrier 50119450 Range (max.) 3.5 m Protective field height 160 mm
Description
Special version: Cross beam scanning, diagonal beam scanning, parallel beam scanning; operating range: 0.1 ... 3.5 m; measuring field length: 160 mm; beam distance: 5 mm; supply voltage: 18 ... 30 V, DC; cycle time: 1.36 ms; connection: Round plug, M12, rear, 5 -pin; dimensions: 29 mm x 35.4 mm x 183 mm
