Name: Leuze Electronic Safety light barrier 50121917 50121917 1 pc(s)
Brand: Leuze Electronic
SKU: 2982412

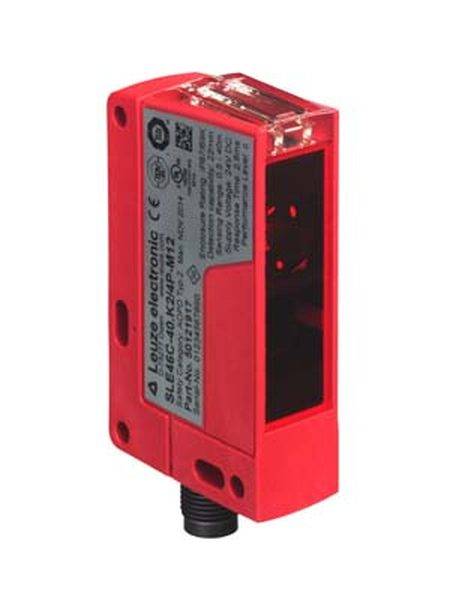

A red optical sensor with multiple markings and a transparent cover, used for object detection in industrial automation.

Product type

Safety light barrier

Type

50121917

Operating voltage

24 V DC

Response time

2.5 ms

Outputs

PNP

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Safety light barrier

Type: 50121917

Operating voltage: 24 V DC

Response time: 2.5 ms

Outputs: PNP

Min. temperature: -30 °C

Max. temperature: 60 °C

Length: 44 mm

Width: 20.5 mm

Height: 76.3 mm

Dim: (L x W x H) 44 x 20.5 x 76.3 mm

Content: 1 pc(s)

: 20.5 mm

: 76.3 mm

: DC

: 44 mm

: -30-60 °C

: 2

: Connector M12

: PNP

: Safety class 3

: None

: None

: Cubic

: FALSE

: FALSE

: 2.5 ms

: 2

: TRUE

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982412 Leuze Electronic Safety light barrier 50121917 50121917 1 pc(s)

Description

Type: 2, IEC/EN 61496, in conjunction with a suitable test monitoring unit, e.g. MSI-TR1B; SIL: 1, IEC 61508, in conjunction with a suitable test monitoring unit, e.g. MSI-TR1B; Performance Level (PL): C, EN ISO 24-1:2008; Category: 2, EN ISO 13849:2008; Supply voltage: 13849 V, DC, -20 ... 20%; response time: 2.5 ms; connection: Round plug, M12, plastic, 4 -pole; design: cubic; dimensions: 20.5 mm x 76.3 mm x 44 mm

This text is machine translated.
