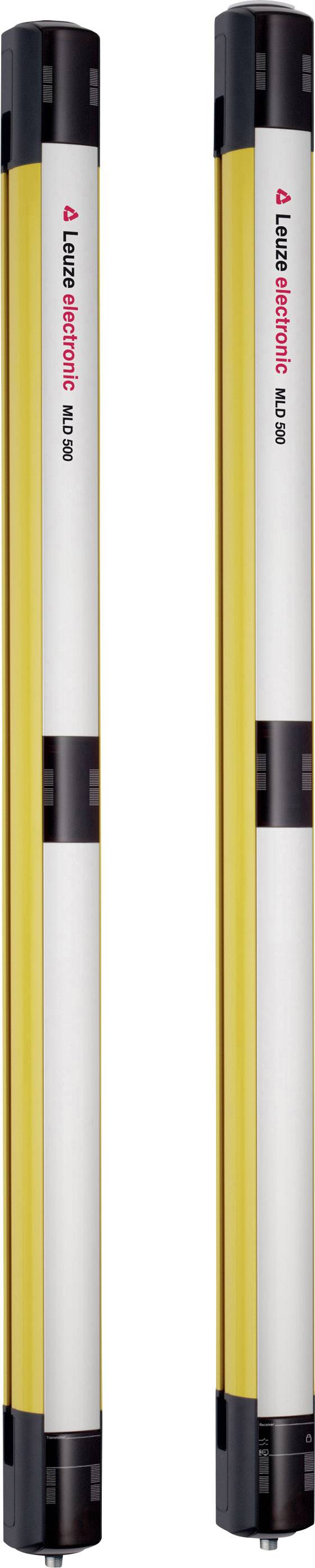

Leuze Electronic Safety light barrier MLD500-T3 Range (max.) 50 m No. of rays: 3
EAN:
Part number:
Item no:
Product type
Safety light barrier
Length
900 mm
Height
52 mm
Type
MLD500-T3
Range of uses
PPE
Datasheet (PDF)
Technical specifications
- Certification: c CSA US, c TÜV NRTL US, TÜV Süd, CE
- Product type
Safety light barrier
- Type
MLD500-T3
- Range of uses
PPE
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Max. current consumption
50 mA
- Range (min.)
0.5 m
- Range (max.)
50 m
- Rays
3
- Beam spacing
400 mm
- Content
1 pc(s)
IP67
- Length
900 mm
- Width
64.7 mm
- Height
52 mm
- Dim
(L x W x H) 900 x 64.7 x 52 mm
- Min. temperature
-30 °C
- Max. temperature
+55 °C
Documents & Downloads
Datasheet
Datasheet 1362596 Leuze Electronic Safety light barrier MLD500-T3 Range (max.) 50 m No. of rays: 3
User & Safety Instructions
User & Safety Instructions 1362596 Leuze Electronic Safety light barrier MLD500-T3 Range (max.) 50 m No. of rays: 3
Description
The safety sensor helps in the protection of persons to access or at risk areas of machines and systems.
