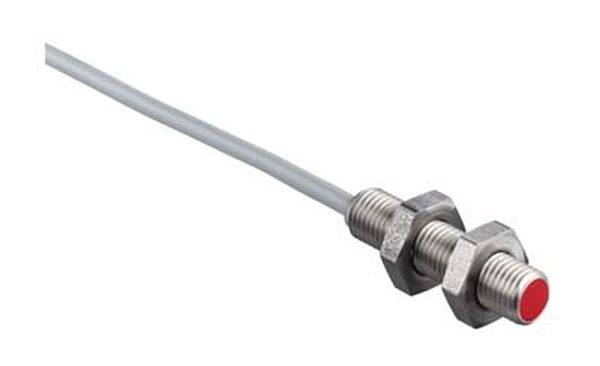

Leuze Electronic Sensor Inductive 50109655 50109655 M8 shielded (Ø x L) 8 mm x 35 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
1 maker
Switching distance (max.)
2 mm
Model
Inductive
Length
35 mm
Technical specifications
- Product type
Sensor
- Type
50109655
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M8
- Cable length
2.000 mm
- Length
35 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 35 mm
- Content
1 pc(s)
- Switching frequency
5.000 Hz
DC
FALSE
Metal
FALSE
Other
5000 Hz
1.6 mm
1
None
Cable
NPN
Normally open contact
10-30 V
None
None
Cylinder, screw-thread
Concise
FALSE
10-30 V
Other
None
FALSE
8 mm
35 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981288 Leuze Electronic Sensor Inductive 50109655 50109655 M8 shielded (Ø x L) 8 mm x 35 mm
Description
Type. Limit range Sn: 2 mm; Operating range Sa: 0 ... 1.6 mm; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, NPN, NO (NO); switching frequency: 5,000 Hz; Connection: line, 2,000 mm, 3 -wire; design housing: cylindrical; thread size: M8; Dimensions: 8 mm x 35 mm; installation type: flush; material housing: stainless steel; approvals: c UL US
