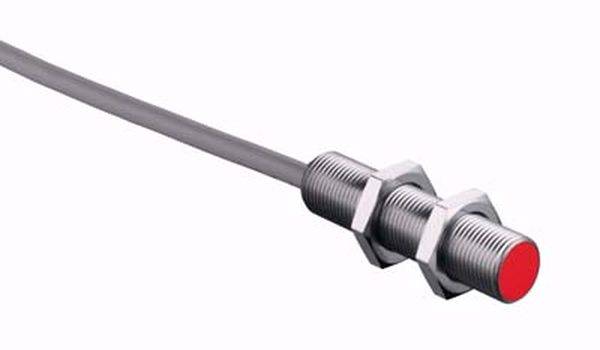

Leuze Electronic Sensor Inductive 50109666 50109666 M12 shielded NPN (Ø x L) 12 mm x 52 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
NPN
Model
Inductive
Technical specifications
- Product type
Sensor
- Type
50109666
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
NPN
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
M12
- Connector
Cable
- Cable length
2.000 mm
- Length
52 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 52 mm
- Content
1 pc(s)
- Switching frequency
3000 Hz
DC
FALSE
Metal
FALSE
Other
3000 Hz
1.6 mm
1
None
Cable
NPN
Normally open contact
10-30 V
None
None
Cylinder, screw-thread
Concise
FALSE
10-30 V
Other
None
FALSE
12 mm
52 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981287 Leuze Electronic Sensor Inductive 50109666 50109666 M12 shielded NPN (Ø x L) 12 mm x 52 mm
Description
Type. Limit range Sn: 2 mm; Operating range Sa: 0 ... 1.6 mm; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, NPN, NO (NO); switching frequency: 3,000 Hz; Connection: pipe, 2,000 mm, 3-wire; housing design: cylindrical; thread size: M12; Dimensions: 12 mm x 52 mm; installation type: flush; material housing: metal; approvals: c UL US
