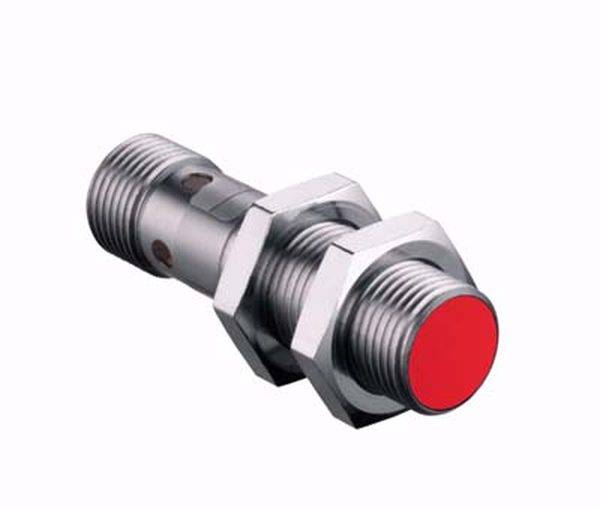

Leuze Electronic Sensor Inductive 50109685 50109685 M12 shielded (Ø x L) 12 mm x 45 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
1 maker
Switching distance (max.)
4 mm
Model
Inductive
Length
45 mm
Technical specifications
- Product type
Sensor
- Type
50109685
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
M12
- Length
45 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 45 mm
- Content
1 pc(s)
- Switching frequency
2.000 Hz
DC
FALSE
Metal
FALSE
Other
2500 Hz
3.2 mm
1
None
Connector M12
PNP
Normally open contact
10-30 V
None
None
Cylinder, screw-thread
Concise
FALSE
10-30 V
Other
None
FALSE
12 mm
45 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981275 Leuze Electronic Sensor Inductive 50109685 50109685 M12 shielded (Ø x L) 12 mm x 45 mm
Description
Type. Limit range Sn: 4 mm; Operating range Sa: 0 ... 3.2 mm; supply voltage: 10 ... 30 V, DC; digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, NO (NO); switching frequency: 2,000 Hz; Connection: round plug, M12, 4-pin; housing design: cylindrical; thread size: M12; Dimensions: 12 mm x 45 mm; installation type: flush; material housing: metal; approvals: c UL US
