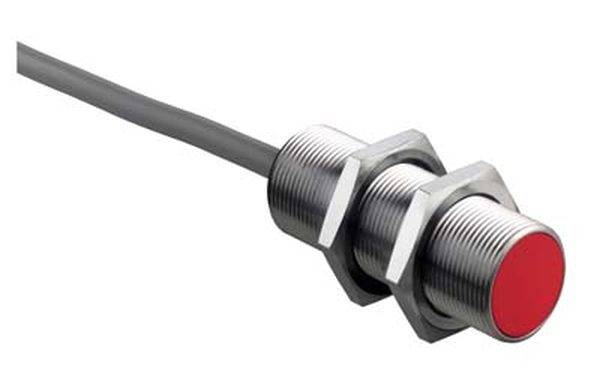

Leuze Electronic Sensor Inductive 50109700 50109700 M18 shielded (Ø x L) 18 mm x 52 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
1 maker
Switching distance (max.)
8 mm
Model
Inductive
Connector
Cable
Technical specifications
- Product type
Sensor
- Type
50109700
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
M18
- Connector
Cable
- Cable length
2.000 mm
- Length
52 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 52 mm
- Content
1 pc(s)
- Switching frequency
1.500 Hz
DC
FALSE
Metal
FALSE
Other
1500 Hz
6.4 mm
1
None
Cable
PNP
Normally open contact
10-30 V
None
None
Cylinder, screw-thread
Concise
FALSE
10-30 V
Other
None
FALSE
18 mm
52 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981274 Leuze Electronic Sensor Inductive 50109700 50109700 M18 shielded (Ø x L) 18 mm x 52 mm
Description
Type. Limit range Sn: 8 mm; Operating range Sa: 0 ... 6.4 mm; supply voltage: 10 ... 30 V, DC; digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, NO (NO); switching frequency: 1,500 Hz; Connection: line, 2,000 mm, 3 -wire, 4 -pin; design: cylindrical enclosure; Thread size: M18; Dimensions: 18 mm x 52 mm; installation type: flush; material housing: metal; approvals: c UL US
