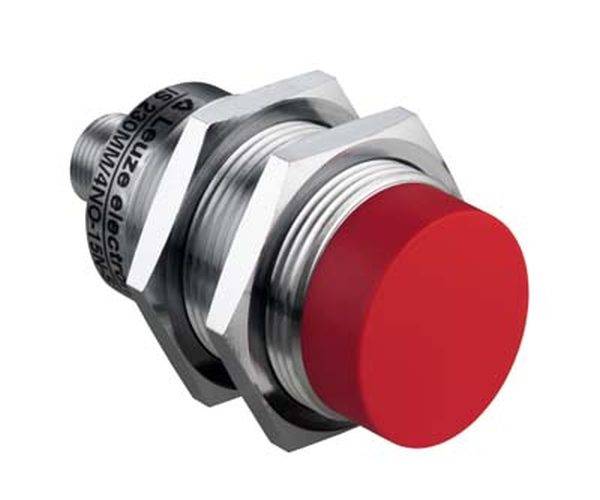

Leuze Electronic Sensor Inductive 50109719 50109719 M30 non-shielded (Ø x L) 30 mm x 63.5 mm
EAN:
Part number:
Item no:
Product type
Sensor
Switching distance (max.)
12.1 mm
Model
Inductive
Length
63.5 mm
(Ø)
30 mm
Technical specifications
- Product type
Sensor
- Type
50109719
- Switching distance (max.)
12.1 mm
- Enclosure material
Metal
- Model
Inductive
- Installation type
non-shielded
- Size
M30
- Length
63.5 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 63.5 mm
- Content
1 pc(s)
- Switching frequency
700 Hz
DC
FALSE
Metal
FALSE
Other
700 Hz
12.1 mm
1
None
Connector M12
NPN
Normally open contact
10-30 V
None
None
Cylinder, screw-thread
Not flat
FALSE
10-30 V
Other
None
FALSE
30 mm
63.5 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981292 Leuze Electronic Sensor Inductive 50109719 50109719 M30 non-shielded (Ø x L) 30 mm x 63.5 mm
Description
Type. Limit range Sn: 15 mm; Operating range Sa: 0 ... 12.1 mm; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, NPN, NO (NO); switching frequency: 700 Hz; Connection: round plug, M12, 4-pin; housing design: cylindrical; thread size: M30; Dimensions: 30 mm x 63.5 mm; type of installation: not flush; material housing: metal; approvals: c UL US
