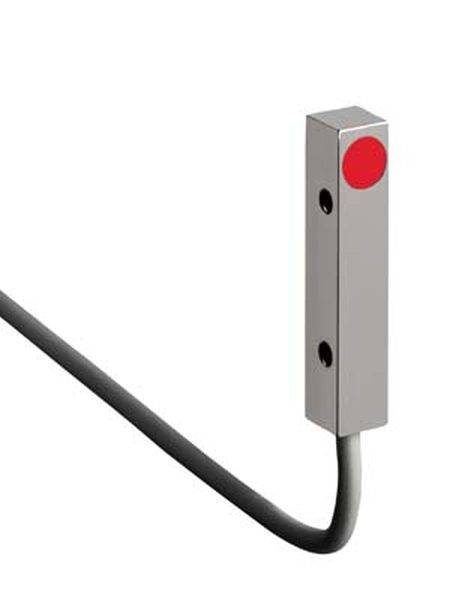

Leuze Electronic Sensor Inductive 50112889 50112889 8 x 8 x 40 mm shielded (L x W x H) 40 x 8 x 8 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
1 maker
Switching distance (max.)
3 mm
Model
Inductive
Length
40 mm
Technical specifications
- Product type
Sensor
- Type
50112889
- Contact type
1 maker
- Switching distance (max.)
3 mm
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
8 x 8 x 40 mm
- Cable length
2.000 mm
- Length
40 mm
- Width
8 mm
- Height
8 mm
- Dim
(L x W x H) 40 x 8 x 8 mm
- Content
1 pc(s)
- Switching frequency
1.000 Hz
DC
FALSE
Metal
FALSE
Other
1000 Hz
2.4 mm
1
None
Cable
PNP
Normally open contact
10-30 V
None
None
Cuboid
Concise
FALSE
10-30 V
Other
None
8 mm
FALSE
8 mm
40 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981303 Leuze Electronic Sensor Inductive 50112889 50112889 8 x 8 x 40 mm shielded (L x W x H) 40 x 8 x 8 mm
Description
Type. Limit range Sn: 3 mm; Operating range Sa: 0 ... 2.4 mm; supply voltage: 10 ... 30 V, DC; digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, NO (NO); switching frequency: 1,000 Hz; Connection: cable, 2,000 mm, 3-core; housing design: cubic; dimensions: 8 mm x 8 mm x 40 mm; type of installation: flush; material housing: metal; approvals: c UL US
