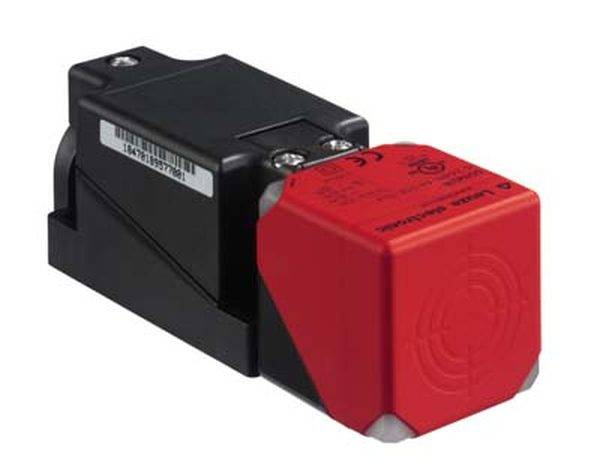

Leuze Electronic Sensor Inductive 50114214 50114214 non-shielded 2x PNP (L x W x H) 118 x 40 x 40 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
Antivalent
Switching distance (max.)
32.4 mm
Outputs
2x PNP
Model
Inductive
Technical specifications
- Product type
Sensor
- Type
50114214
- Contact type
Antivalent
- Switching distance (max.)
32.4 mm
- Outputs
2x PNP
- Enclosure material
Plastic
- Model
Inductive
- Installation type
non-shielded
- Connector
Clip
- Length
118 mm
- Width
40 mm
- Height
40 mm
- Dim
(L x W x H) 118 x 40 x 40 mm
- Content
1 pc(s)
- Switching frequency
150 Hz
DC
FALSE
Plastic
FALSE
Other
180 Hz
32.4 mm
2
None
Clamp
PNP
Other
10-30 V
None
None
Cuboid
Not flat
FALSE
10-30 V
Other
None
40 mm
FALSE
40 mm
118 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981263 Leuze Electronic Sensor Inductive 50114214 50114214 non-shielded 2x PNP (L x W x H) 118 x 40 x 40 mm
Description
Type. Limit range Sn: 40 mm; Operating range Sa: 0 ... 32.4 mm; special version: Antivalent; supply voltage: 10 ... 30 V, DC; Digital switching output: 2 pcs.; Switching output 1: Transistor, PNP, NO (NO) - Antivalent; switching output 2: Transistor, PNP, NC (NC) - Antivalent; switching frequency: 150 Hz; connection: Clamp, 4-pin; housing type: Cubic; Dimensions: 40 mm x 40 mm x 118 mm; type of installation: not flush; material housing: plastic; approvals: c UL US
