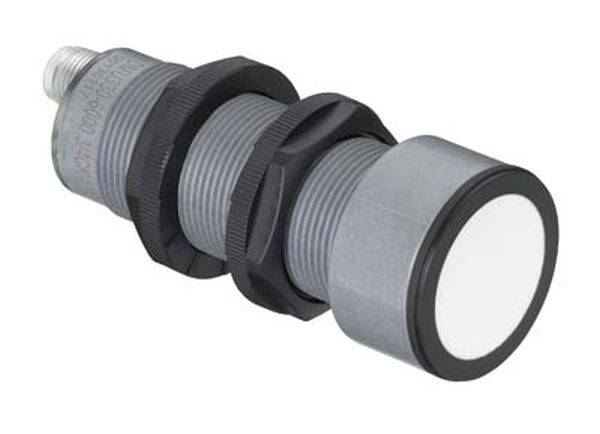

Leuze Electronic Ultrasonic proximity sensor Ultrasound M30 50136117 Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ultrasonic proximity sensor
Switching distance (max.)
6.000 mm
Model
Ultrasound
(Ø)
30 mm
Technical specifications
- Packaging type
Piece
- Product type
Ultrasonic proximity sensor
- Type
50136117
- Switching distance (max.)
6.000 mm
- Model
Ultrasound
- Size
M30
- Enclosure material
Plastic
- Contact type
1 maker
- Length
98.8 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 98.8 mm
DC
100 mA
Plastic
-20-70 °C
1 Hz
0 mA ... 20 mA / 4 mA ... 20 mA
Connector M12
PNP
Normally open contact (NO)
350 mm
Manual adjustment
None
None
Cylinder plain
50 mA
1 %
0.5 %
FALSE
12-30 V
Plastic
Other
30 mm
98.8 mm
350-6000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983894 Leuze Electronic Ultrasonic proximity sensor Ultrasound M30 50136117 Piece
Description
Special version: Multiplex operation, synchronous operation; measuring range: 350 ... 6,000 mm; Geometric resolution: 6 mm; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 1 pieces; Analogue output: Current; Switch output: Transistor, PNP, NO (NO); In/outputs: 1 pieces; connection: round plug, M12, 5-pin; design: cylindrical, M30; Dimensions: 98.8 mm; material housing: plastic; operating elements: operating keys
