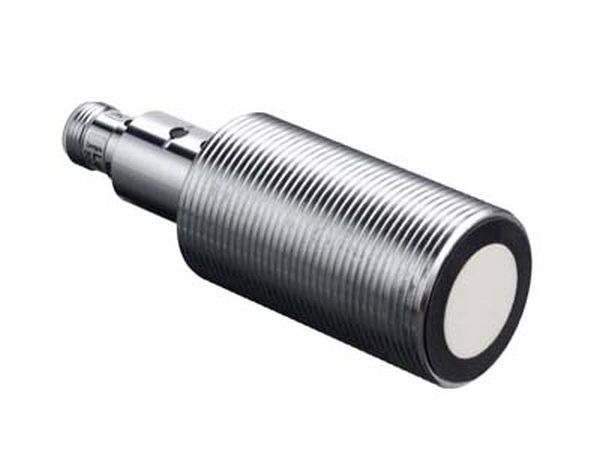

Leuze Electronic Ultrasonic proximity sensor Ultrasound M30 Current (analogue) 50124265 Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ultrasonic proximity sensor
Outputs
Current (analogue)
Model
Ultrasound
Type
50124265
Technical specifications
- Packaging type
Piece
- Product type
Ultrasonic proximity sensor
- Type
50124265
- Outputs
Current (analogue)
- Model
Ultrasound
- Size
M30
- Enclosure material
Metal
- Contact type
Antivalent
DC
150 mA
Other
-25-70 °C
4 Hz
0 mA ... 20 mA / 4 mA ... 20 mA
Connector M12
PNP/NPN
Change-over contact (NO/NC)
300 mm
Manual adjustment
None
None
Cylinder plain
Other
50 mA
FALSE
15-30 V
Other
30 mm
90 mm
300-3000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983903 Leuze Electronic Ultrasonic proximity sensor Ultrasound M30 Current (analogue) 50124265 Piece
Description
Special version: Multiplex operation, synchronous operation; measuring range: 300 ... 3,000 mm; Geometric resolution: 1.0 mm; Supply voltage: 15 ... 30 V, DC; Digital switching outputs: 1 pieces; Analogue output: Current; Switching output: Transistor, Push-pull, NC/NO; Inputs/outputs: 1 pc; Interface: IO-Link; Connection: circular connector, M12, 5 -pin; Design: cylindrical, M30; Dimensions: 90 mm; Housing material: metal; operating elements: operating keys
