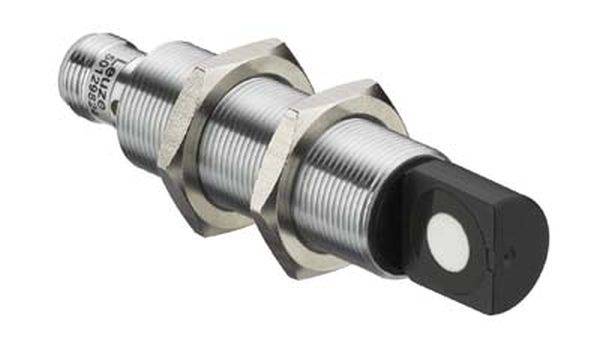

Leuze Electronic Ultrasonic switch Ultrasound M18 2x PNP 50129826
EAN:
Part number:
Item no:
Product type
Ultrasonic switch
Outputs
2x PNP
Switching distance (max.)
400 mm
Model
Ultrasound
(Ø)
18 mm
Technical specifications
- Product type
Ultrasonic switch
- Type
50129826
- Outputs
2x PNP
- Switching distance (max.)
400 mm
- Model
Ultrasound
- Size
M18
- Enclosure material
Metal
- Length
82.8 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 82.8 mm
DC
150 mA
Other
-25-70 °C
7 Hz
Connector M12
PNP
Normally open contact (NO)
25 mm
None
None
Cylinder, screw-thread
50 mA
0.15 %
FALSE
15-30 V
Other
18 mm
97.8 mm
25-400 mm
25-400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983957 Leuze Electronic Ultrasonic switch Ultrasound M18 2x PNP 50129826
Description
Special version: Teach-in input, 2 independent switching outputs; operating range: 0.025 ... 0.4 m; opening angle: 9 °; radiation direction: 90° - deflection; supply voltage: 15 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, NO (NO); switching output 2: Transistor, PNP, NC/NO; switching frequency: 7 Hz; connection: round plug, M12, 5 -pin; design: cylindrical, M18; dimensions: 18 mm x 82.8 mm; material housing: metal
