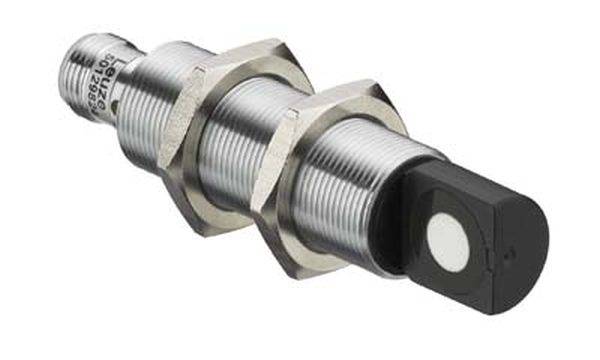

Leuze Electronic Ultrasonic switch Ultrasound M18 50129825
EAN:
Part number:
Item no:
Product type
Ultrasonic switch
Model
Ultrasound
(Ø)
18 mm
Type
50129825
Size
M18
Technical specifications
- Product type
Ultrasonic switch
- Type
50129825
- Model
Ultrasound
- Size
M18
- Enclosure material
Metal
- Length
70.8 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 70.8 mm
DC
150 mA
Other
-25-70 °C
8 Hz
Connector M12
PNP
Normally open contact (NO)
150 mm
None
None
Cylinder, screw-thread
50 mA
0.15 %
FALSE
15-30 V
Other
18 mm
85.8 mm
150-1000 mm
150-1000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983958 Leuze Electronic Ultrasonic switch Ultrasound M18 50129825
Description
Special version: Teach-in; operating range: 0.15 ... 1 m; opening angle: 16 °; radiation direction: 90° - deflection; supply voltage: 15 ... 30 V, DC; digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, NO (NO); switching frequency: 8 Hz; Connection: round plug, M12, 5-pin; design: cylindrical, M18; Dimensions: 18 mm x 70.8 mm; material housing: metal
